Heater Core: Locations

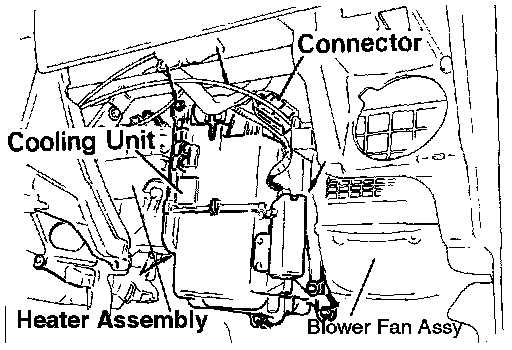

Heating/Cooling/Blower Assembly:
The heating unit (with heater radiator) is centrally located under the safety pad (dashboard) and is attached to the left side of the cooling unit. It is located behind the A/C and heater control panel.
