Engine - Valve Spring Compressor Identification
REFERENCE SST
NUMBER
004
DATE
1-31-86
MODEL 4A-GE, C, 3S-GE, 7M-GE SERIES ENGINE

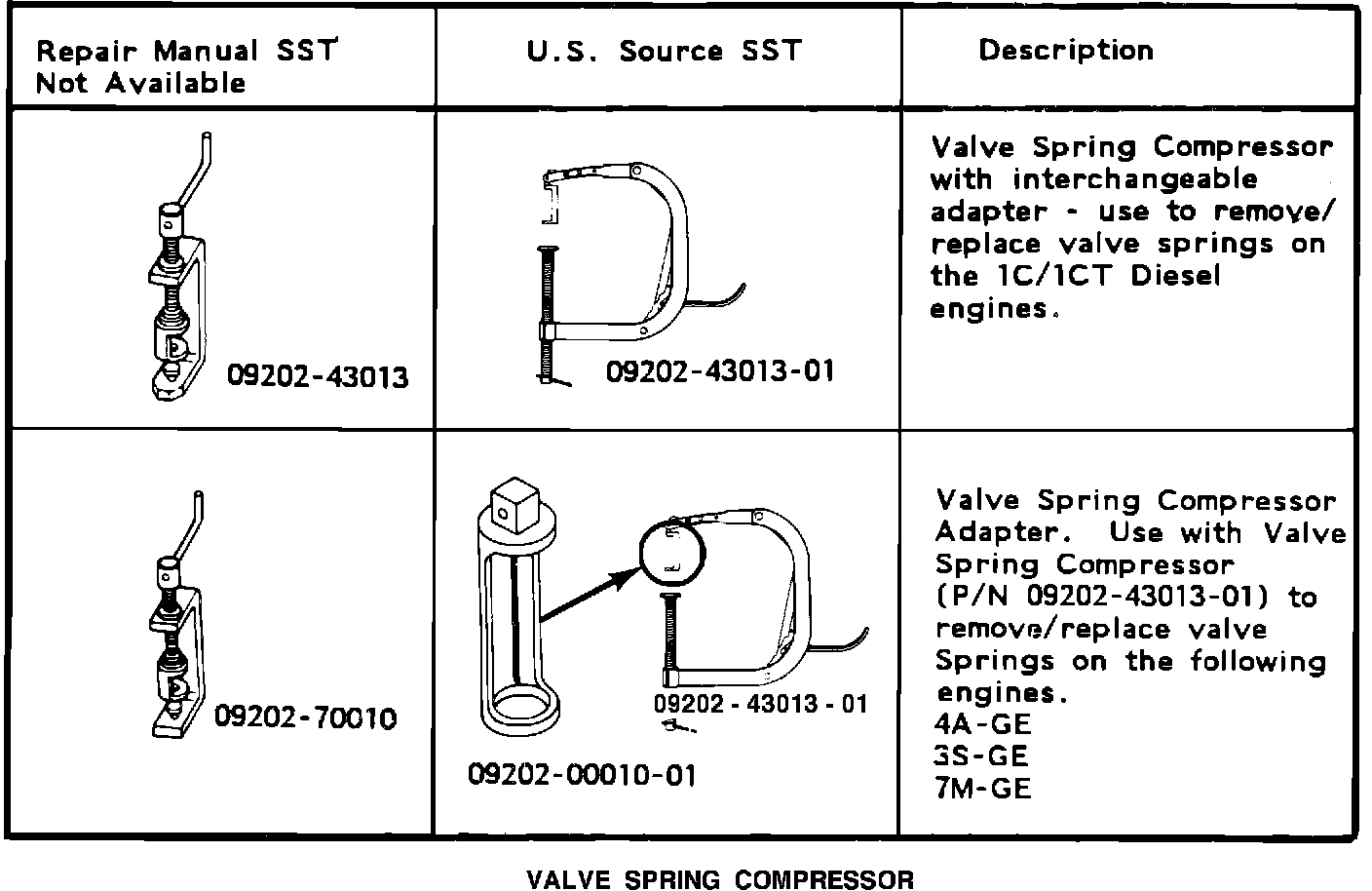

VALVE SPRING COMPRESSOR:
The
Valve Spring Compressor for the 1C/1C-T Diesel engine 4A-GE, 3S-GE and the 7M-GE engine available for the U.S. market appear different from the valve spring compressor shown in the repair manual.
