Control Module HVAC: Testing and Inspection
Check Engine Speed Detecting Circuit
1)
Run the engine and operate the air conditioner.
2)
Check that the magnetic clutch disengages at the specified engine revolution.
Cut-off rpm:
450 - 550 rpm 3)

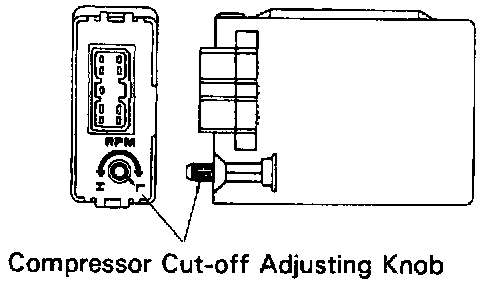

If the cut-out rpm is too high, turn the rpm knob clockwise to adjust.
4)
If the cut-out rpm is too low, turn the rpm knob counterclockwise to adjust.
