Temp. Control Lever Resistance

Temperature Control Lever Resistance:

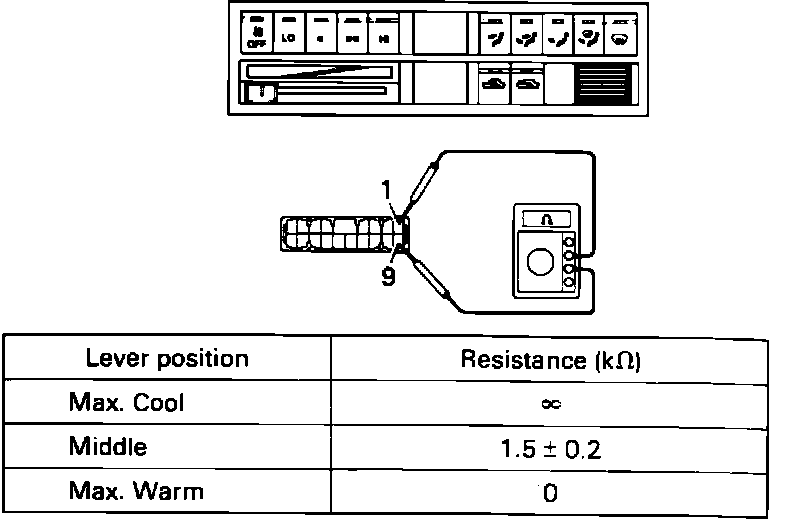

1. Measure resistance between terminals A1 and A9 for each lever position as shown on image chart.
2. If resistance is not as specified, replace heater control assembly.
