Coolant Thermosensor

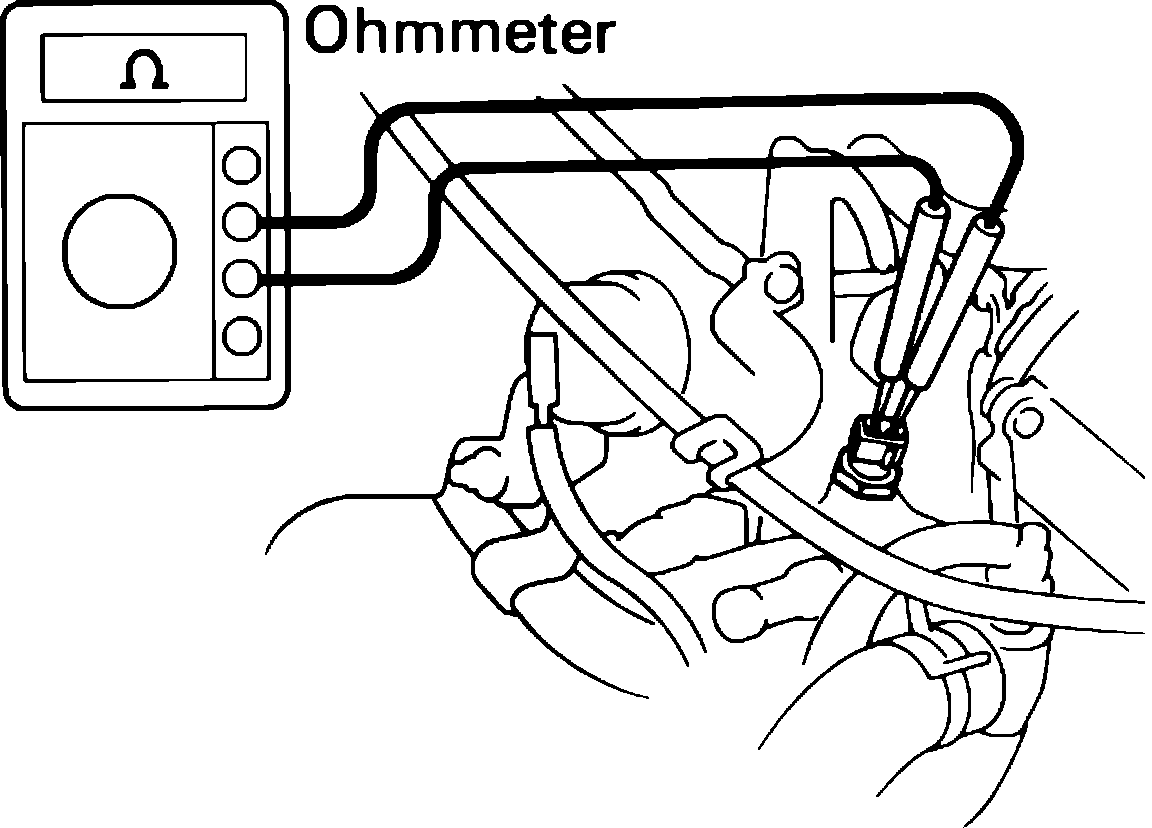

Fig. 43 Testing Coolant Thermosensor:
Fig. 59 Coolant thermo sensor test specifications:
1.
Disconnect electrical connector from sensor and measure resistance between sensor terminals,
Fig. 43. 2.
If measured resistance does not correspond to values shown in graph,
Fig. 59, sensor is defective.
