Spark Plug: Service and Repair

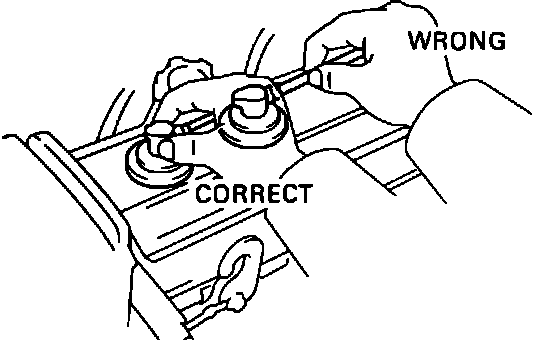

Ignition Wire Removal:
1. Remove ignition wires from spark plugs.
Spark Plug Removal:

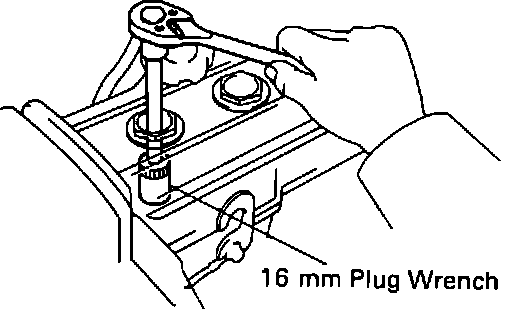

2. Using a 16 mm spark plug socket remove spark plugs from cylinder head.
3. Using a suitable gapping tool, adjust spark plug gap.
Spark Plug Gap: 0.043 in (1.1 mm)
4. Apply a light coat of anti-seize compound to threads of spark plugs.
5. Using a 16 mm spark plug socket, install spark plugs.
Torque Value: 13 ft.lb (18 Nm)
6. Reconnect spark plug wires to the appropriate spark plug. Ensure proper firing order.
Firing Order: 1 - 3 - 4 - 2
