Seat Belt Control Module: Testing and Inspection

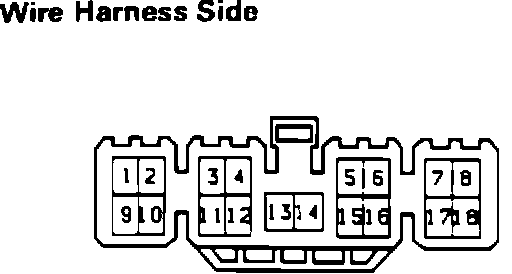

Computer Connector:
1.
Disconnect computer connector.
Troubleshooting:
2.

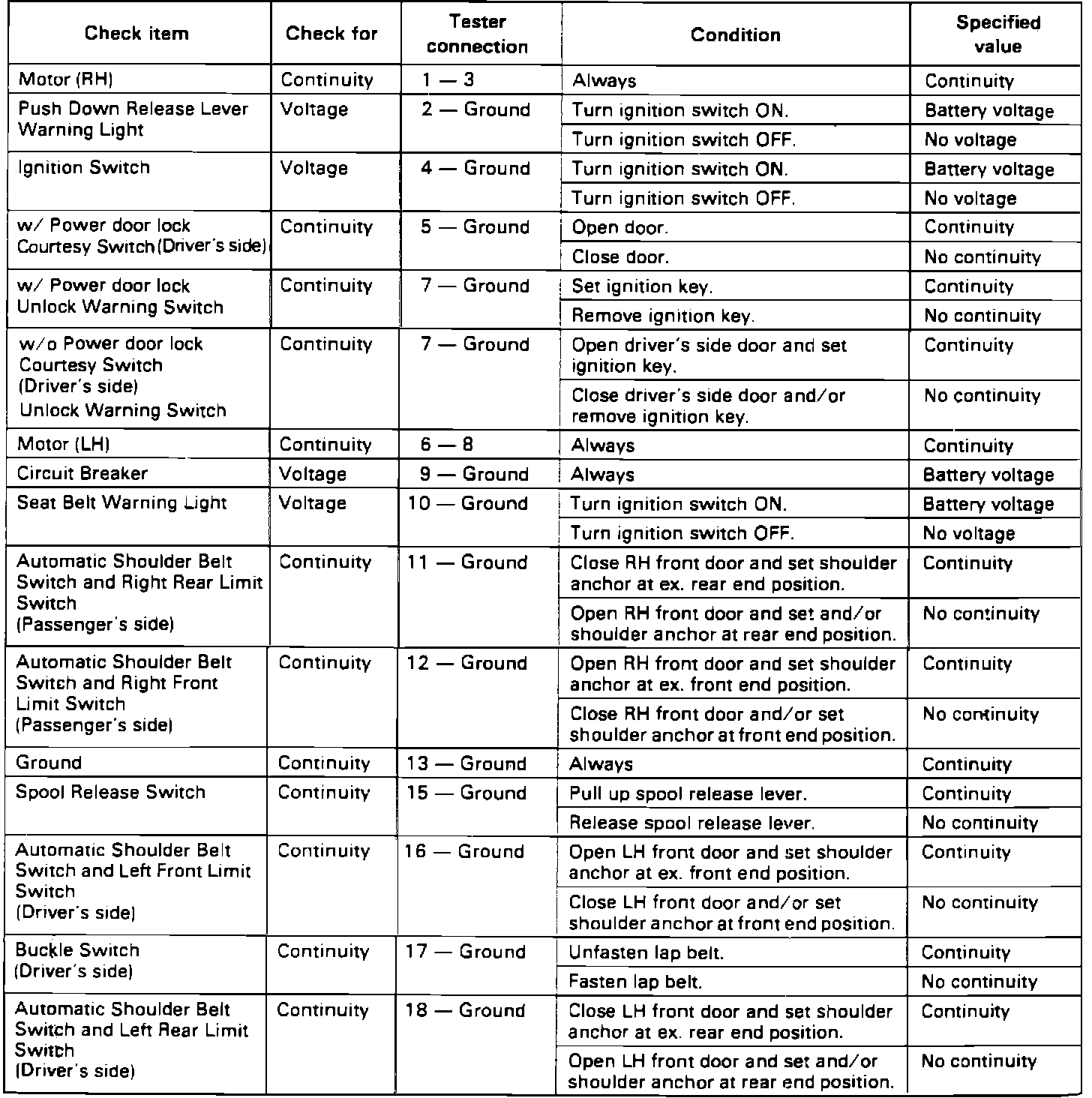

Using wiring harness side of connector, perform continuity and voltage tests as per troubleshooting chart.
3.
If all circuits are as specified, replace computer.
