In-Car Sensor

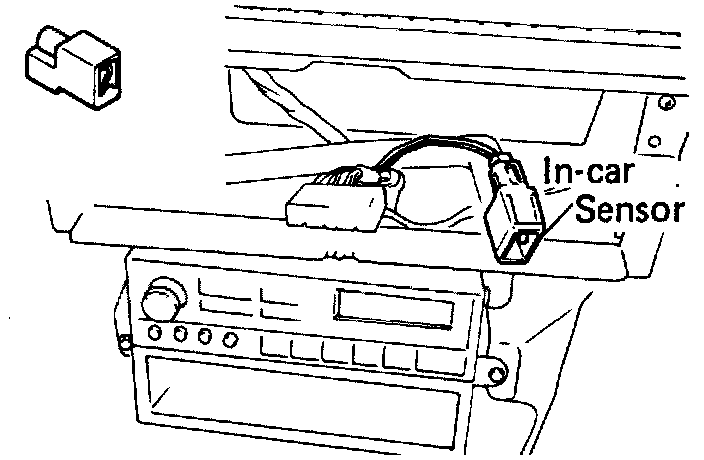

In-Car Sensor Terminal Location:

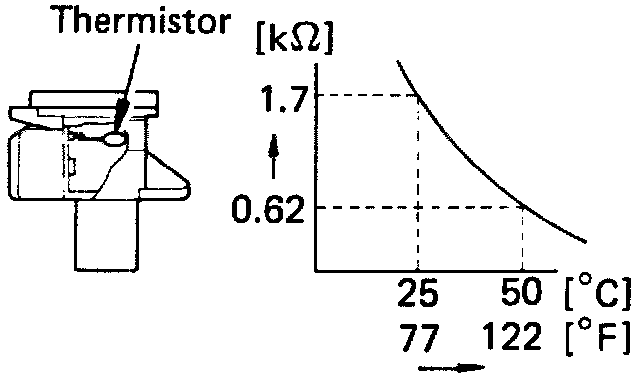

In-Car Sensor Testing:
Check the sensor resistance.
NOTE: If there is an open circuit in the sensor, the system will operate at maximum heating.
Conversely, if there is a short in the system, it will operate at maximum cooling.
