Compressor Clutch Relay: Testing and Inspection

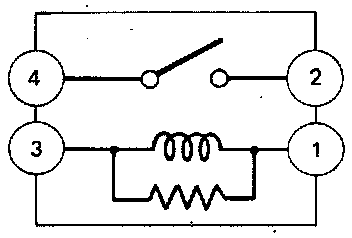

Relay Schematic:





CONTINUITY

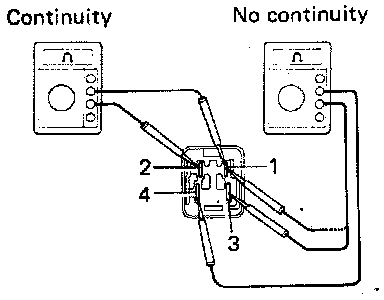

Relay Test-Continuity:





1. Check that there is continuity between terminals 1 and 2.
2. Check that there is no continuity between terminals 3 and 4.
3. Check that there is no continuity between terminals 1 and 4.
4. If not as specified, replace relay.

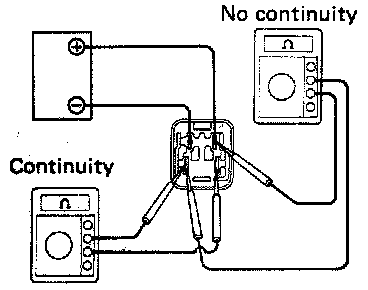

Relay Test-Power On:





OPERATION

1. Apply battery voltage to terminals 1 and 2.
2. Check that there is continuity between terminals 3 and 4.
3. If not as specified, replace relay.
