Ignition Cable: Testing and Inspection
1. CAREFULLY REMOVE HIGH-TENSION CORDS BY THE RUBBER BOOTS FROM SPARK PLUGS.
CAUTION: Pulling on or bending the cords may damage the conductor inside.

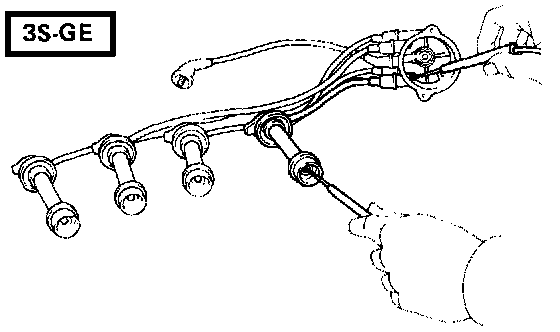

2. INSPECT HIGH-TENSION CORD RESISTANCE.
- Using an ohmmeter, measure the resistance without disconnecting the distributor cap.
Maximum resistance: 25 k-ohms per cord
- If the resistance is greater than maximum, check the terminals. if necessary, replace the high-tension cord and/or distributor cap.
