M/T Technical Data

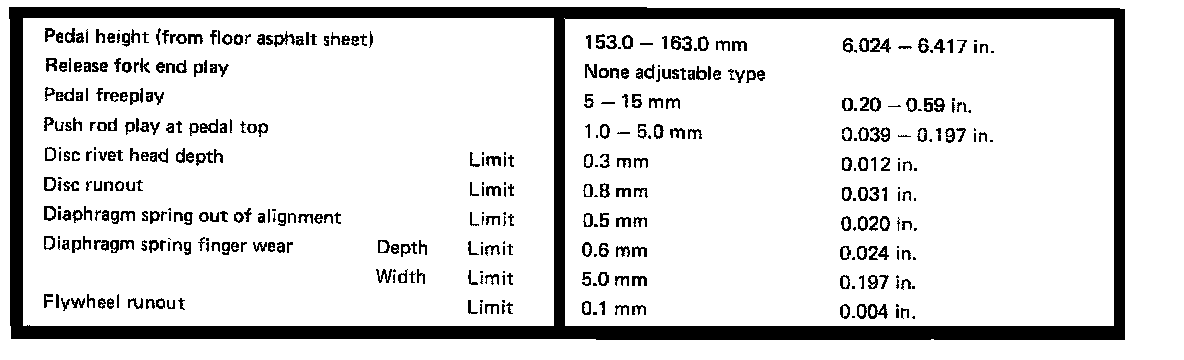

S53 5-spd M/T, Clutch Clearances:

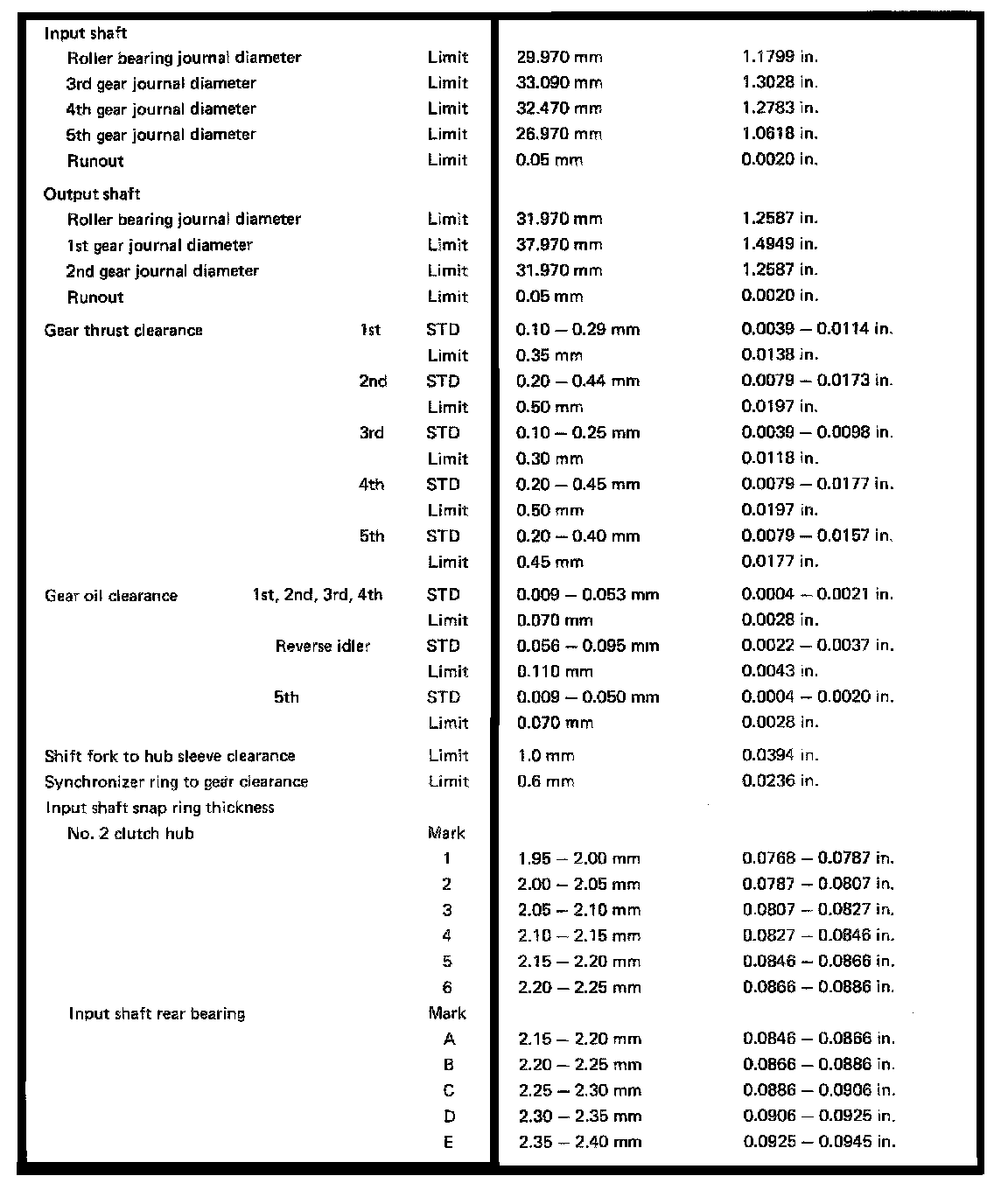

S53 5-spd M/T, Shaft Diameter/Gear Clearances:

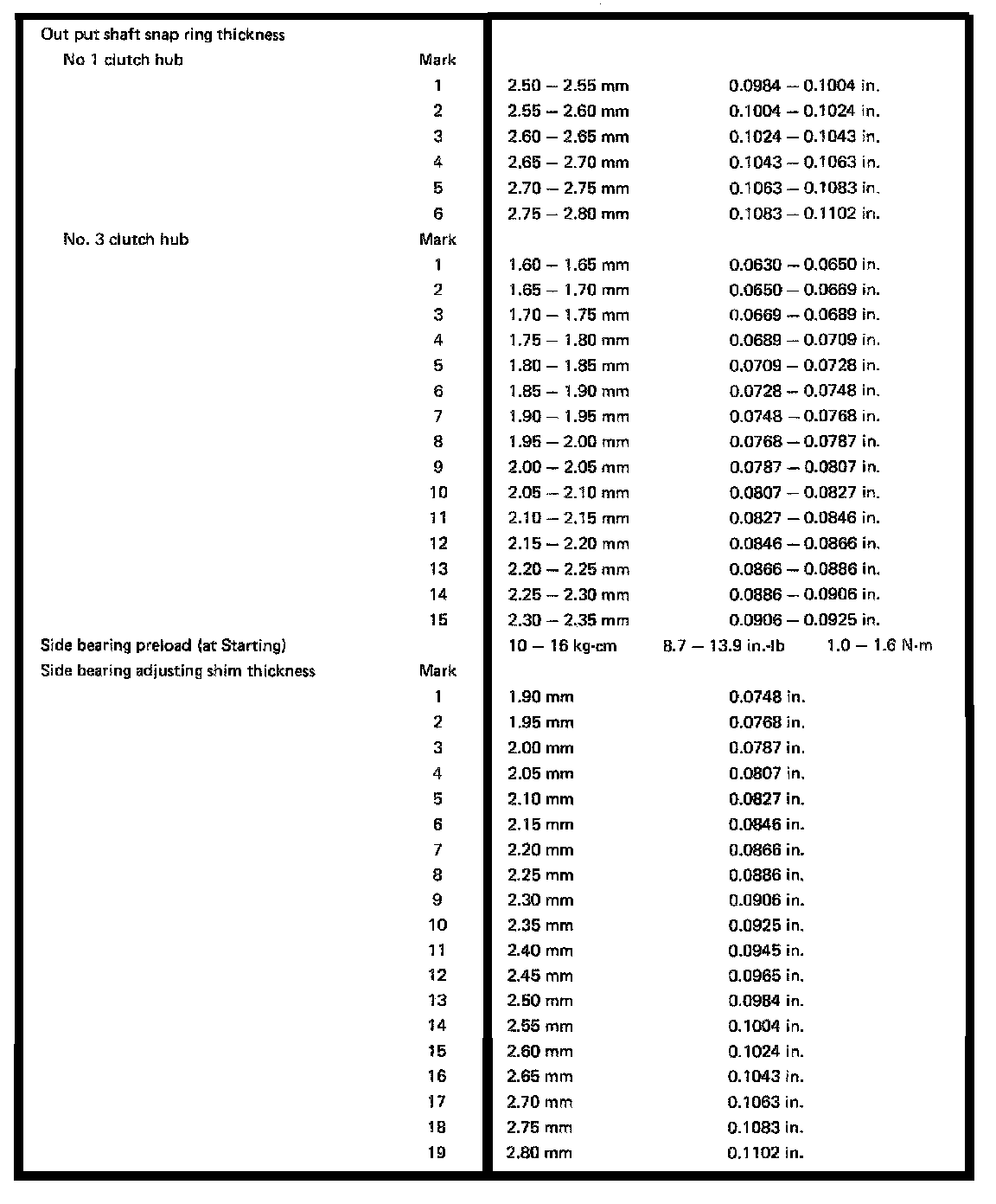

S53 5-spd M/T, Clutch Hub/Bearing Thickness:





S53 5-spd M/T, Shift Lever Shim Thickness:
