REPLACEMENT OF DISTRIBUTOR DRIVEN GEAR





1. GRIND DRIVEN GEAR AND PIN

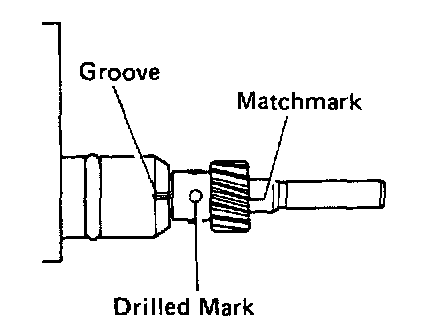

(a) Align the drilled mark on the driven gear with the groove of the housing.

(b) Place a matchmark on the distributor shaft that aligns with the groove of the housing.

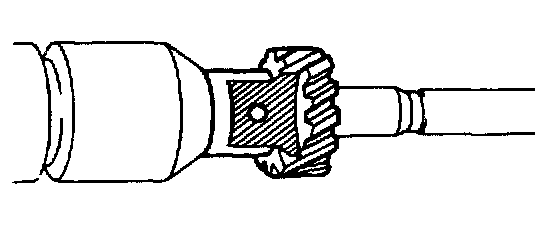

(c) Using a grinding wheel, grind the gear and pin.

CAUTION: Be careful not to damage the shaft.





2. REMOVE PIN AND DRIVE GEAR

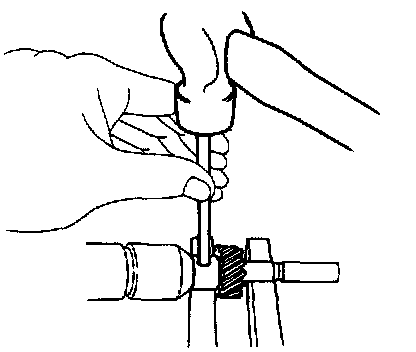

(a) Using a punch and hammer, drive out the pin.

(b) Remove the driven gear and discard it.





3. INSTALL NEW DRIVEN GEAR AND PIN

(a) Align the matchmark with the groove of the housing.

(b) Align the drilled mark on the new driven gear with the groove of the housing.

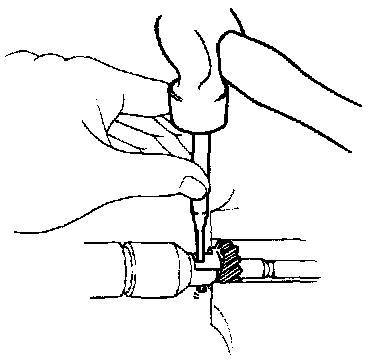

(c) Using a punch and hammer, peen both ends of the pin.
