System Check Procedure

PREPARATION
1. Remove the center pillar garnish.
2. Remove the seat belt retractor.

ELECTRONIC FUEL INJECTION (EFI) SYSTEM CHECK PROCEDURE





NOTE:
- Perform all voltage measurements with the connectors connected.
- Verify that the battery voltage is 11 V or above when the ignition switch is at "ON".

Using a voltmeter with high-impedance (10k/V minimum), measure the voltage at each terminal of the wiring connector.









ECU Terminals

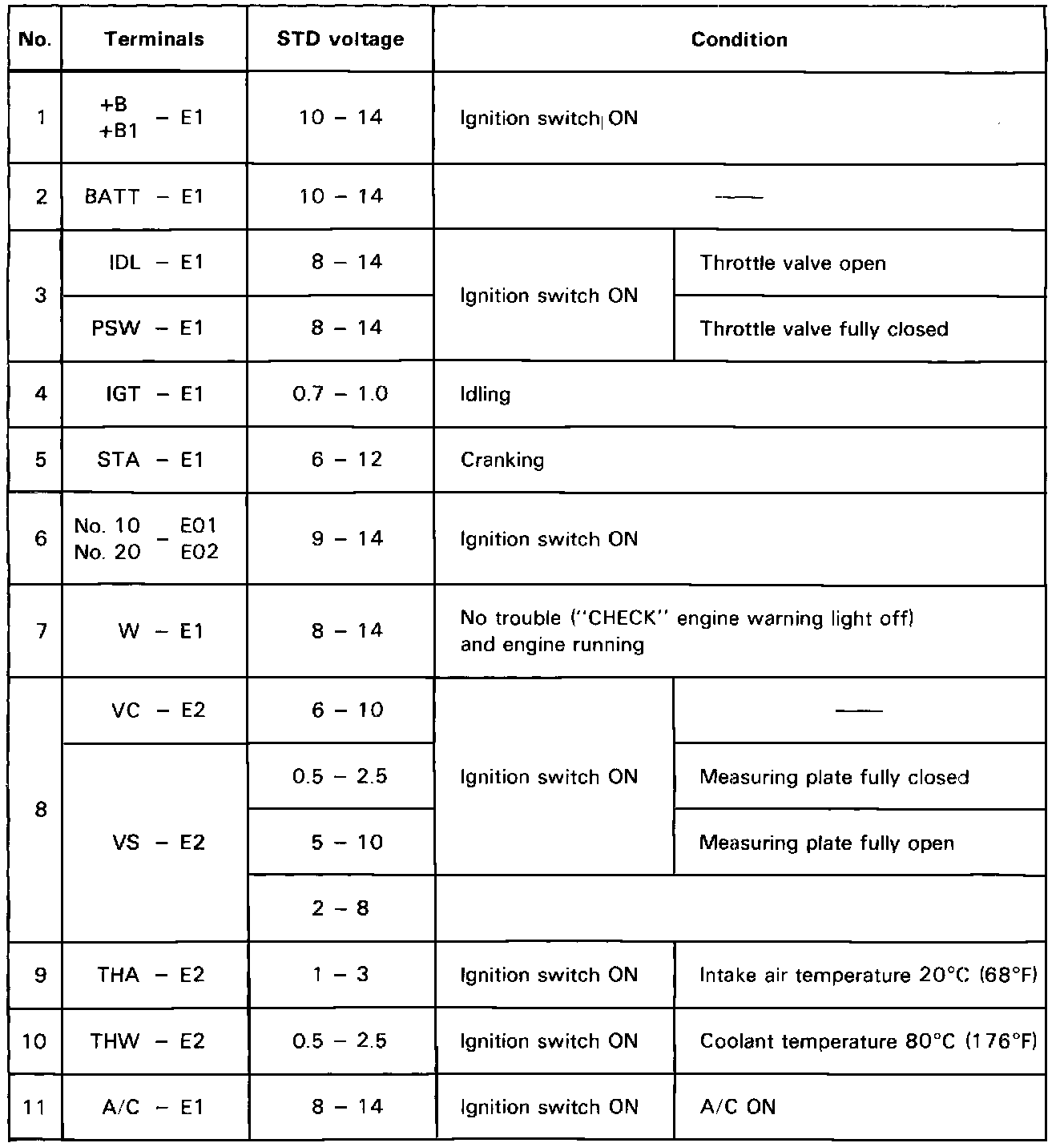

Voltage at ECU Wiring Connectors.

NOTE: If there are any problems, proceed with test indicated in left column.
