Control Module HVAC: Locations

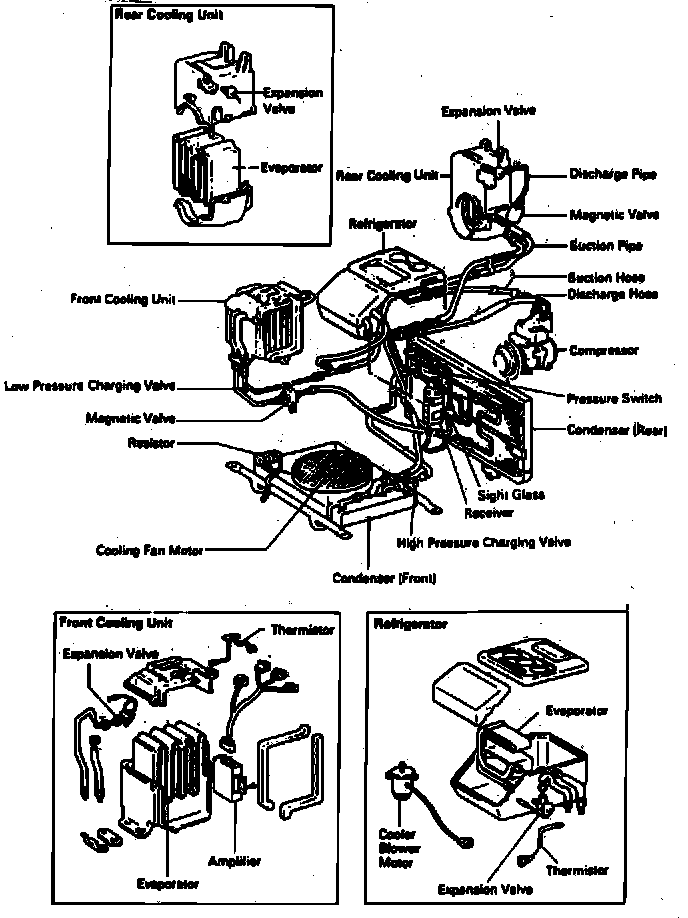

A/C Components.:

Inside Front Cooling Unit

Applicable to: 2WD 1987-88 Van w/Dual A/C

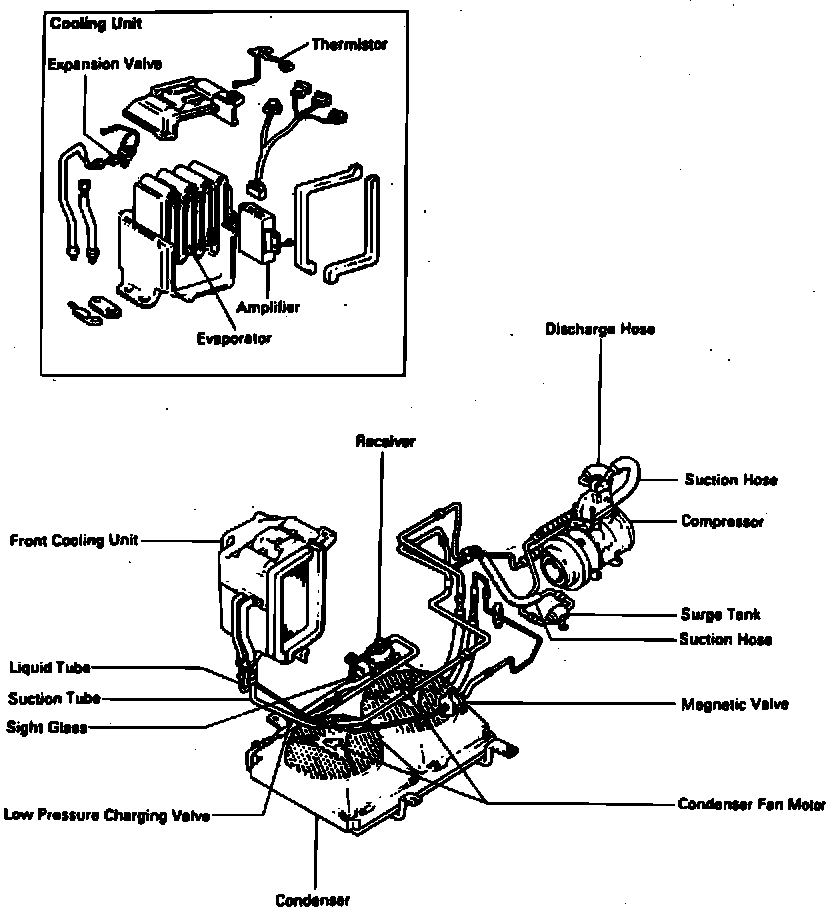

A/C Components.:

Inside Front Cooling Unit

Applicable to: 2WD 1987-88 Van w/Single A/C

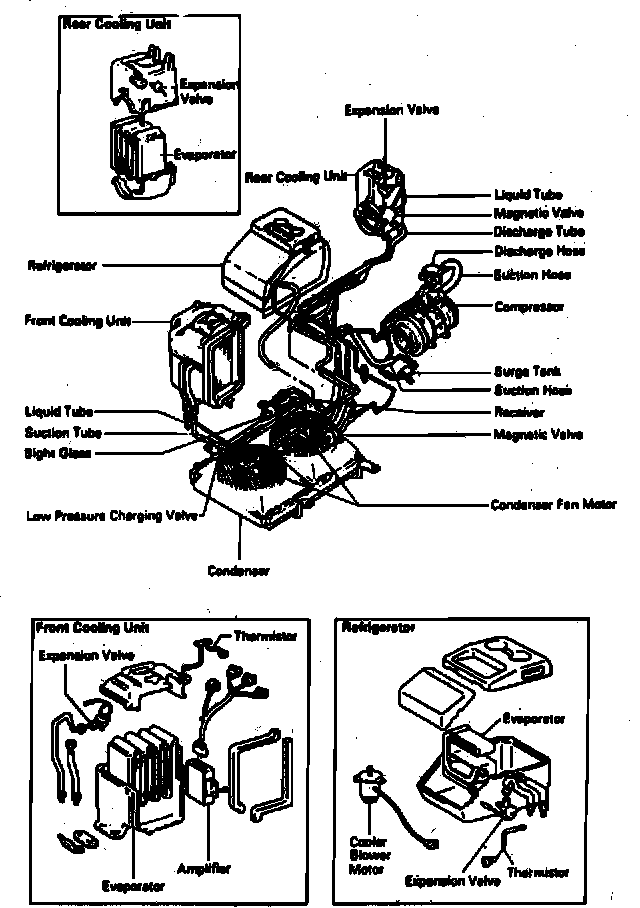

A/C Components.:

Inside Front Cooling Unit

Applicable to: 4WD 1987-88 Van w/Dual A/C

A/C Components.:

Inside Front Cooling Unit

Applicable to: 1987 4WD Van w/Single A/C

A/C Components.:

Inside Front Cooling Unit

Applicable to: 1988 4WD Van w/Single A/C
