Ignition Control Module: Locations

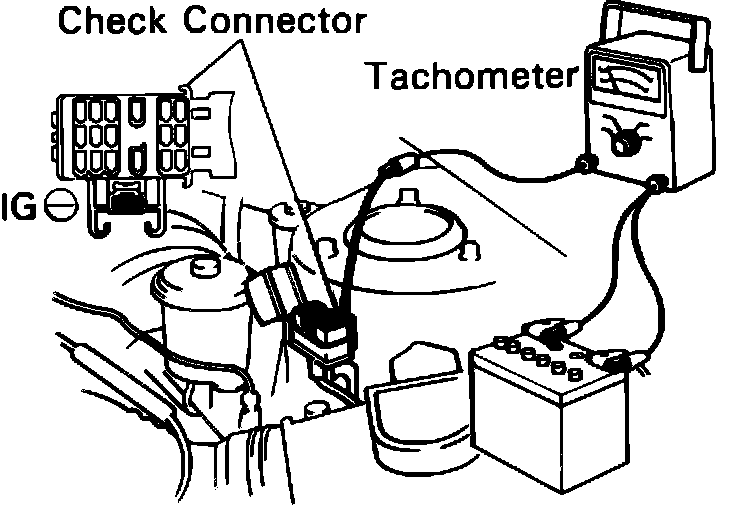

Fig. 44 Connecting Tachometer:
DIAGNOSTIC CHECK CONNECTOR:
Located on left strut tower, near brake master cylinder
Distributor, Exploded View:
DISTRIBUTOR:
Located on rear of right cylinder head
Behind Center Console:
ELECTRONIC CONTROL UNIT (ECU):
Located under center of dash
IGNITER:
Located near strut tower, rear of engine
Primary Coil Resistance:
IGNITION COIL:
Located near strut tower, rear of engine
SIGNAL GENERATOR PICKUP COILS:
Located inside distributor
SPARK PLUGS:
Located in top of cylinder heads, center of valve cover
