Camber & Toe-In

CAMBER

Camber angle is preset and not adjustable. If camber angle is not to specification, inspect and/or replace suspension components as required.

TOE-IN

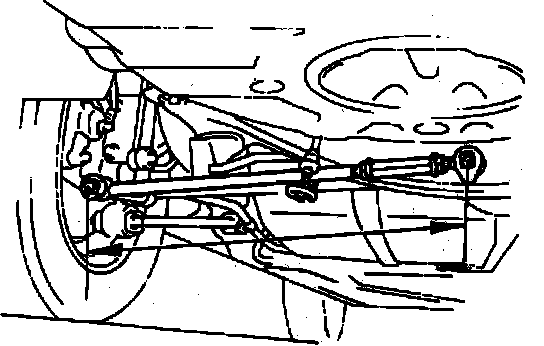

Fig. 13 Rear Toe-in Measurement:

1. Measure length of left and right No. 2 lower suspension arms, Fig. 1.
2. Adjust length of lower suspension arms if difference in length is greater than .04 inch.
3. Loosen locknuts and turn left and right adjusting tubes an equal distance to adjust toe-in.
4. One turn of the adjusting tube will adjust toe-in approximately .264 inch.
5. Following adjustment, torque locknuts to 41 ft. lbs.
