Air Conditioning Amplifier
Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart below.
Test conditions:
1.
Ignition switch: ON
2.
Temperature control lever: MAX COOL
3.
Blower switch: HI
4.

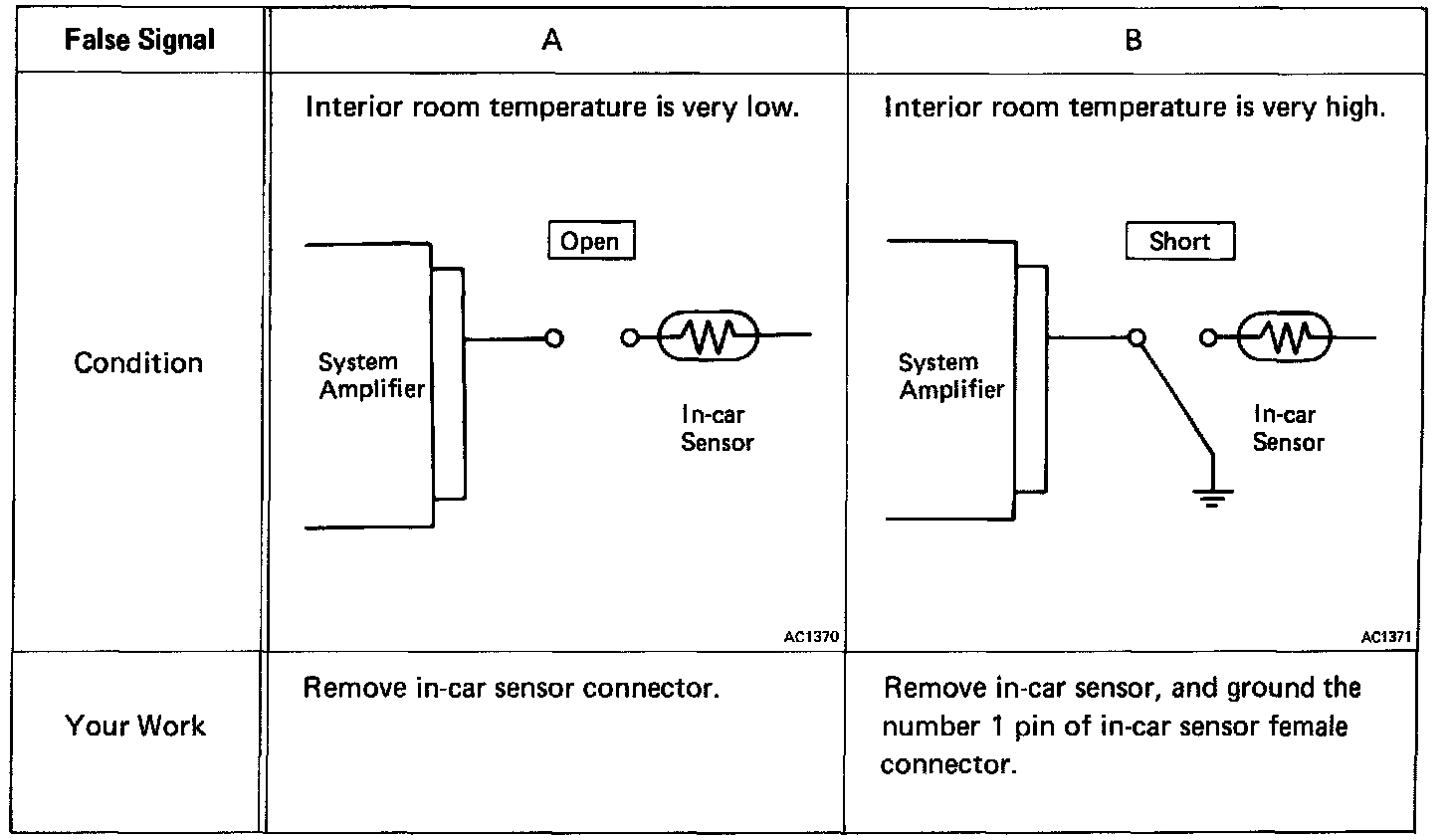

False Signal Input to System Amplifier
5.

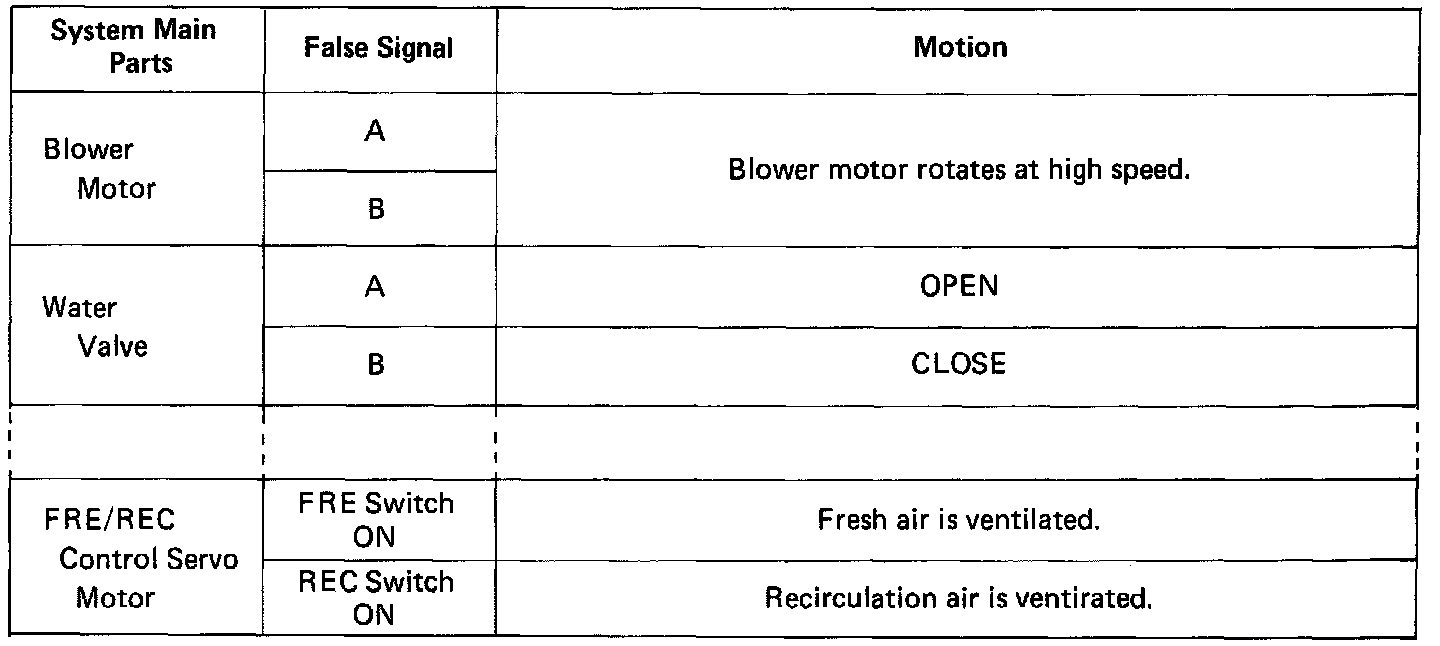

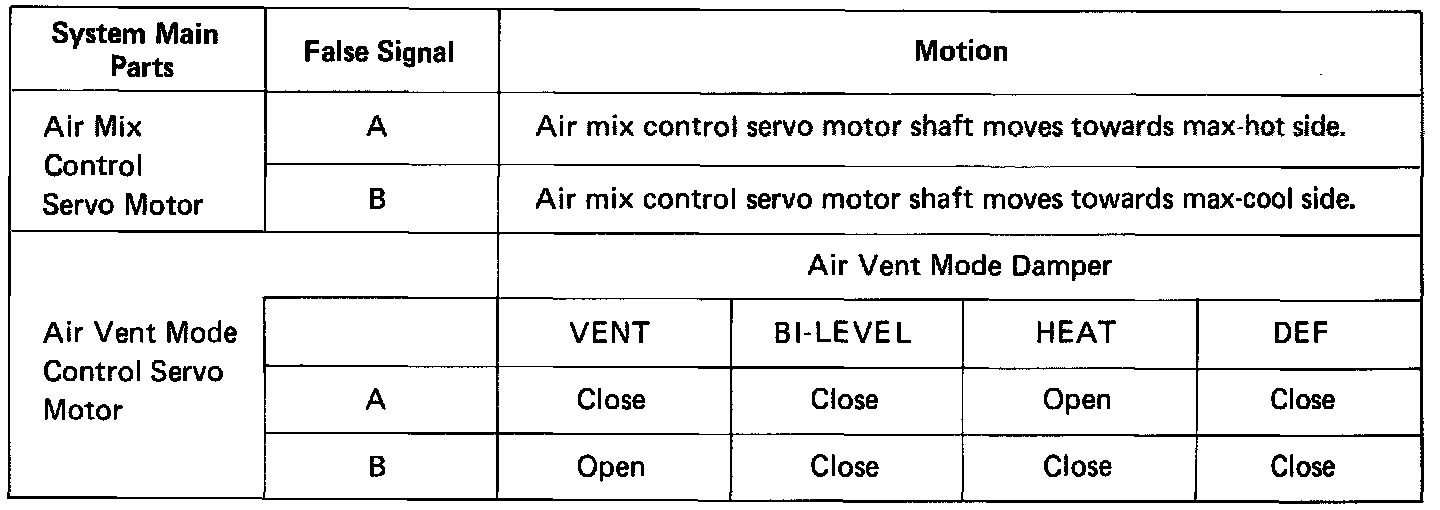

System Operation when Input False Signal
Condition: Setting Temperature is at 25°C (77°F)
If necessary, replace the system amplifier.
