Condenser Fan Control Amplifier

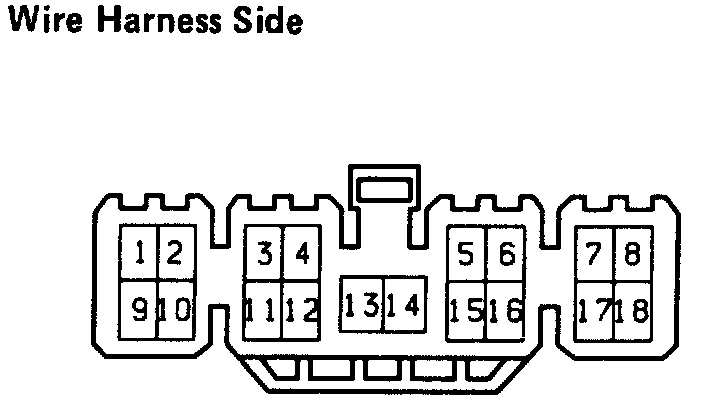

AC Amplifier Terminal ID:

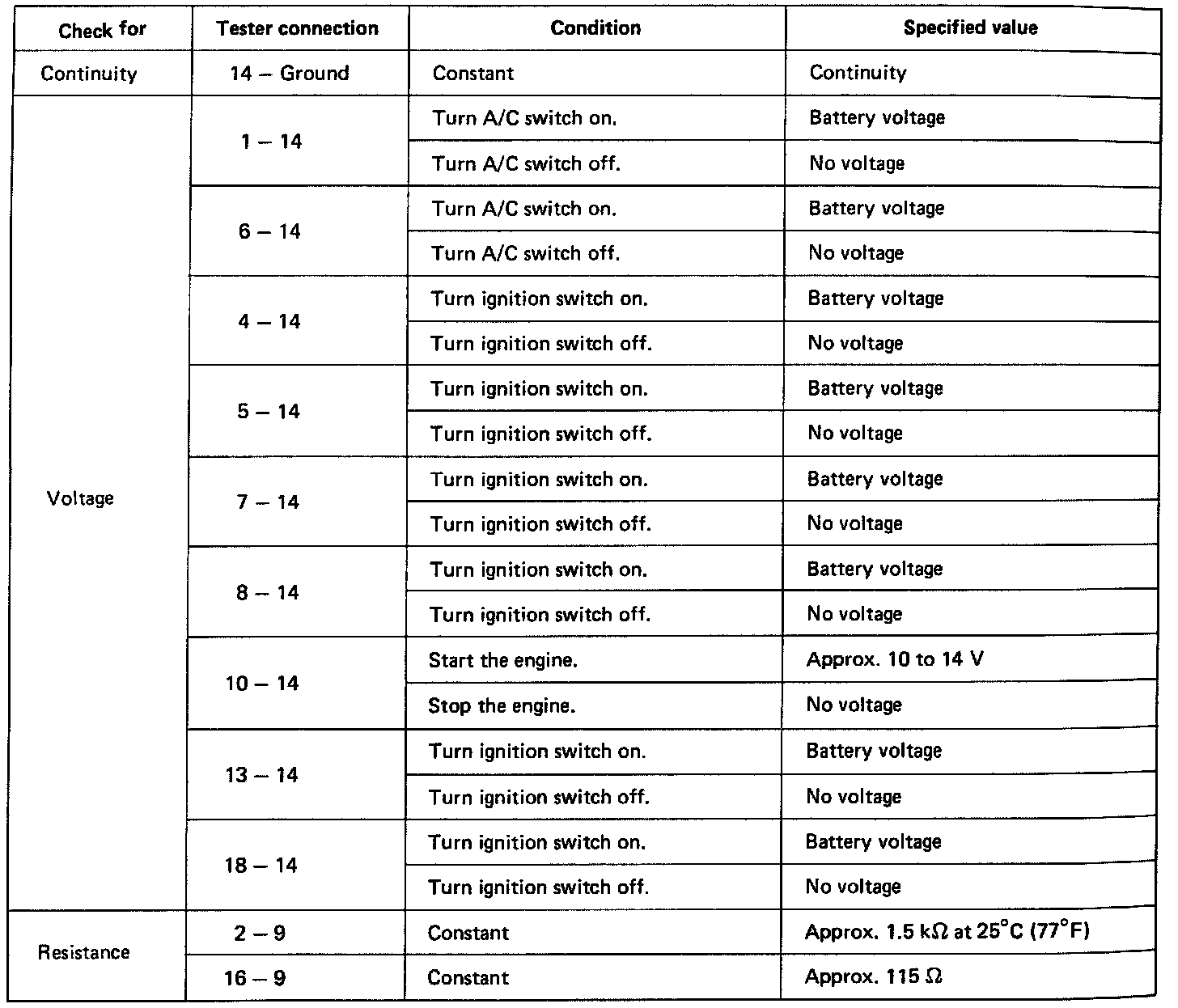

AC Amplifier Circuit Checks:
Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart.
Test Conditions:
1.
Ignition switch: ON
2.
Temperature Control Lever: MAX COOL
3.
Blower Switch: HI
