Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

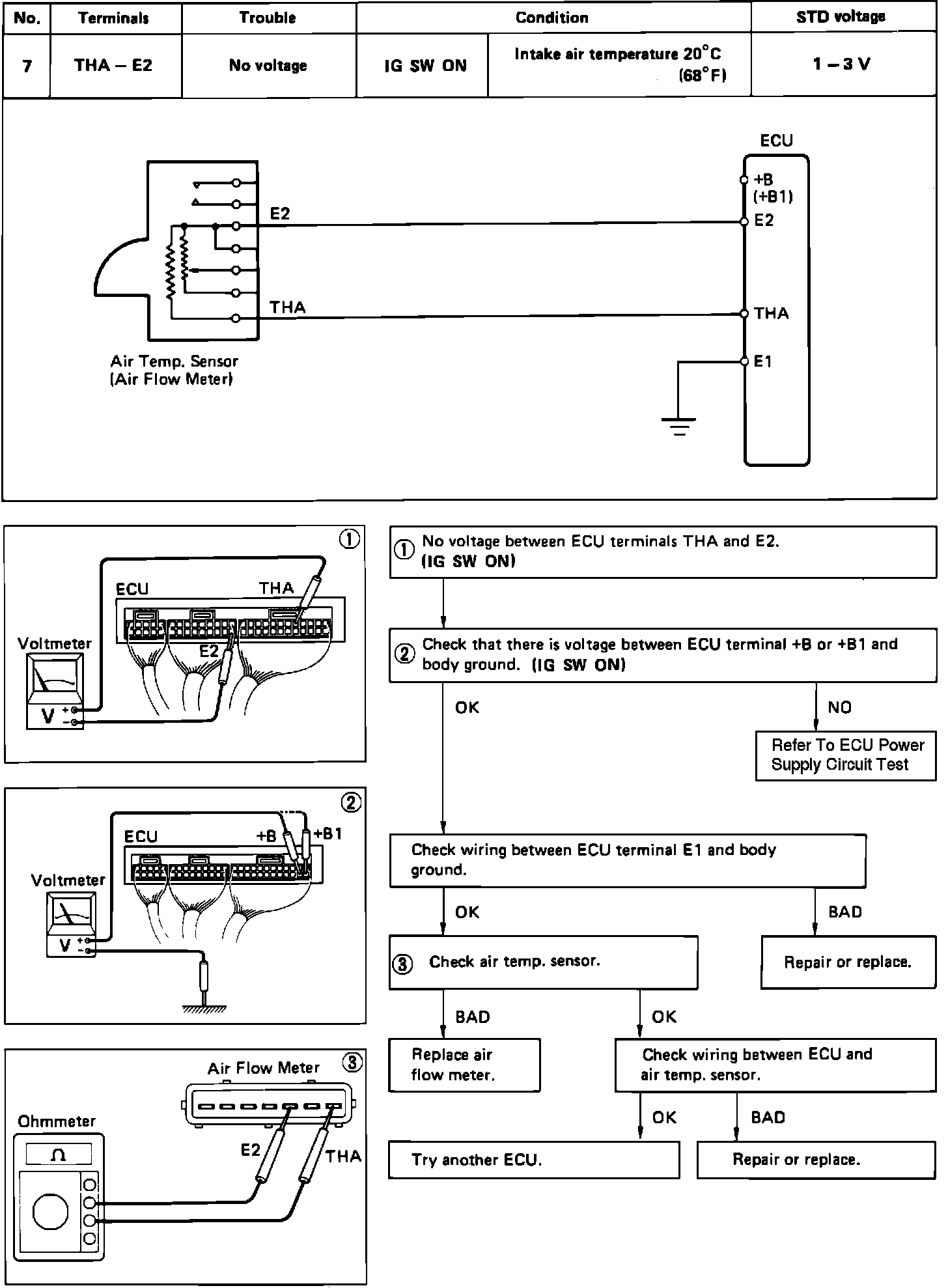

Air Temperature Sensor Circuit Test:
1.
Disconnect Air Flow Meter connector.
2.
Using an Ohmmeter, measure the resistance between each terminal. (Refer to chart)
Testing Air Flow Meter:
Air Flow Meter Resistance Chart:
3.
If the readings are not as specified, replace the Air Flow Meter.
4.
If readings are normal, reattach the connector.
