System Check Procedure
ELECTRONIC FUEL INJECTION (EFI) SYSTEM CHECK PROCEDURE NOTE: -
Perform all voltage measurements with the connectors connected.
-
Verity that the battery voltage is
11 V or more when the
ignition switch is at "ON".

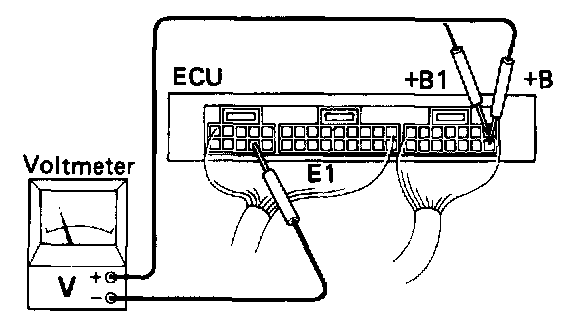

Using a voltmeter with high impedance (10 k-ohms/V minimum), measure the voltage at each terminal of the wiring connectors.
Pinout Values and Diagnostic Parameters
