Ignition Coil: Service and Repair

Distributor:

REMOVAL:

1. Remove distributor from vehicle. Refer to DISTRIBUTOR in this section.

2. Remove the distributor cap from the distributor.

3. Remove the ignition rotor, and dust cover.

Ignition Coil Primary Wires:

4. Disconnect the three wires from the terminals of the ignition coil.

5. Remove the four retaining screws. Remove ignition coil and gasket.

INSTALLATION:

1. Reinstall coil and gasket. Tighten coil retaining screws evenly.

CAUTION: Do not use impact or air tools on ignition coil retaining screws.

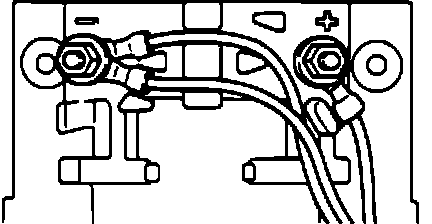

Ignition Coil Primary Wires:

2. Reconnect the three wires to the terminals of the ignition coil.

NOTE: Ensure the wires are properly inserted into their grooves, located on the side of the ignition coil. Ensure that the wires don't contact the signal rotor or distributor housing.

3. Install the ignition rotor, dust cover, and distributor cap.

4. Install distributor in vehicle. Refer to DISTRIBUTOR in this section.
