3S-GE Engine
Fig. 93 Tachometer Hookup:
DIAGNOSTIC CHECK CONNECTOR:
Located in engine compartment near brake master cylinder

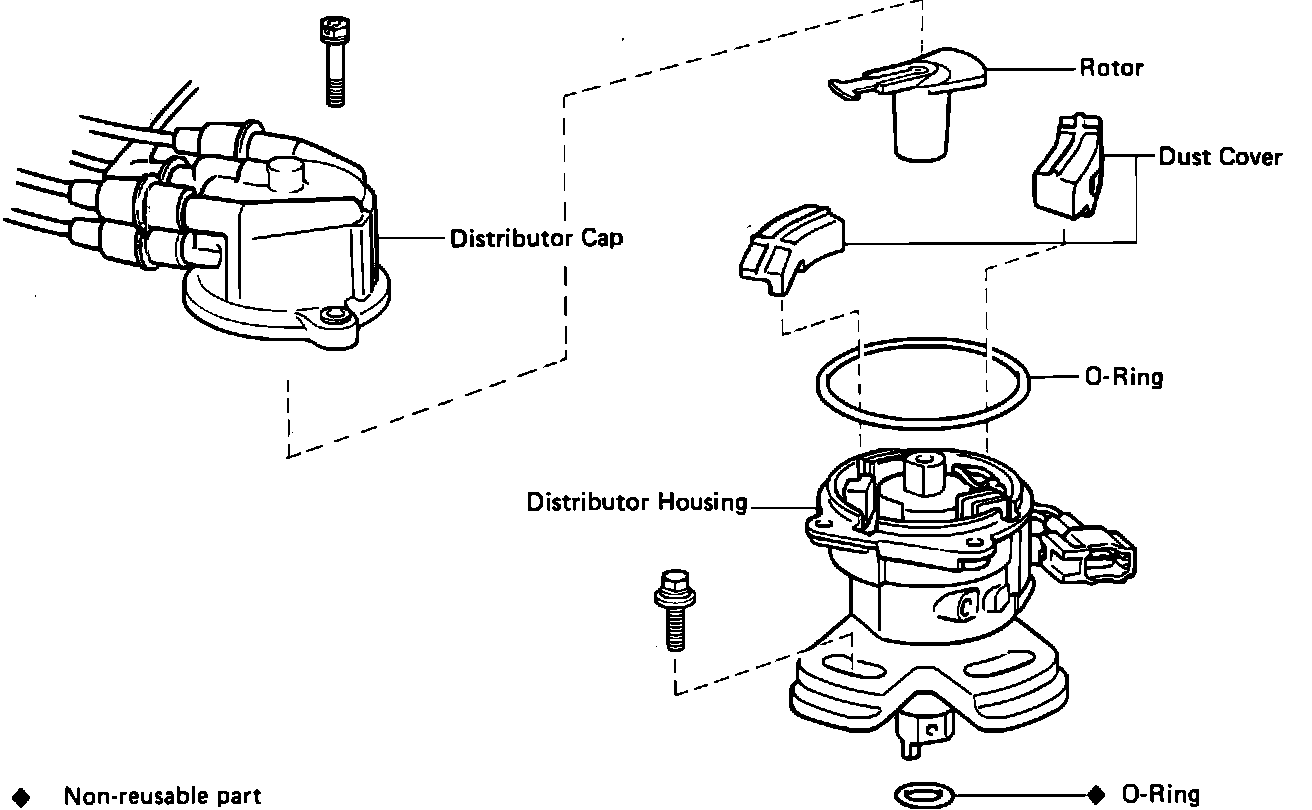

Distributor, Exploded View:
DISTRIBUTOR:
Located on rear of cylinder head
Behind Center Console:
ELECTRONIC CONTROL UNIT (ECU):
Located under center of dash
IGNITER:
Located near center of engine compartment, near firewall
IGNITION COIL:
Located left side of engine compartment`
Pick Up Coil Air Gap:
SIGNAL GENERATOR PICKUP COILS:
Located inside distributor
SPARK PLUGS:
Located in top of cylinder head, center of valve cover
TACHOMETER CONNECTOR:
Located in diagnostic check connector
