Ignition Control Module: Service and Repair

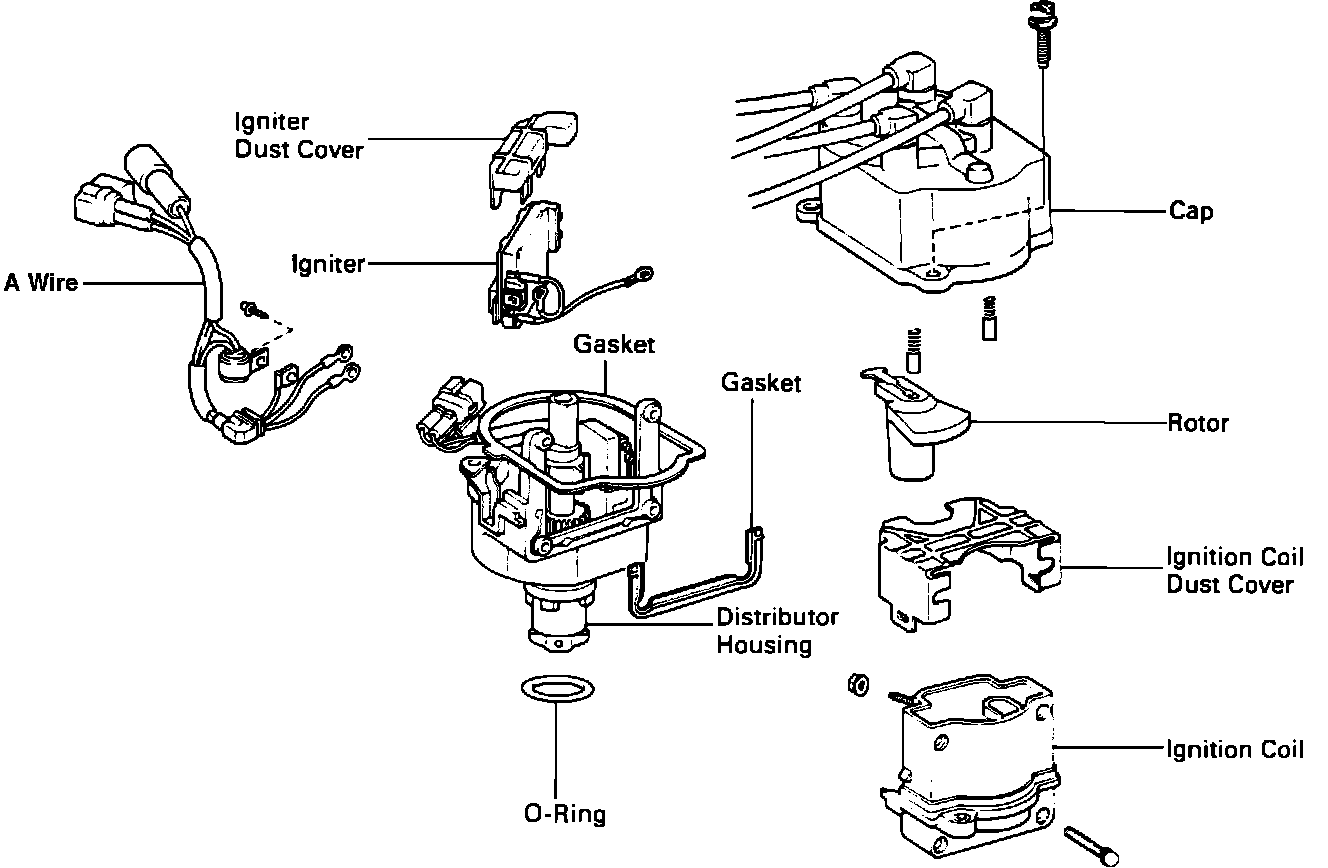

Distributor, Exploded View:

REMOVAL:

1. Remove distributor from vehicle. Refer to DISTRIBUTOR in this section.

2. Remove the distributor cap from the distributor.

3. Remove the ignition rotor, and dust covers.

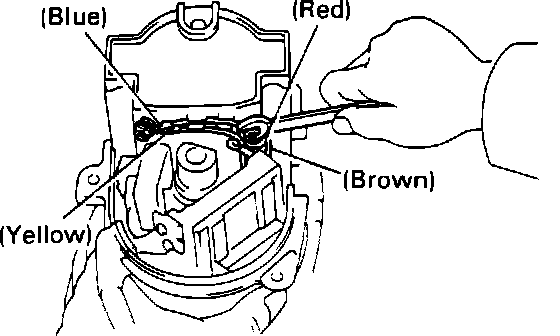

Ignition Coil Primary Wire Installation:

4. Disconnect the wires from the terminals of the ignition coil.

Ignition Coil Removal:

5. Remove the four retaining screws. Remove ignition coil and dust proof packing.

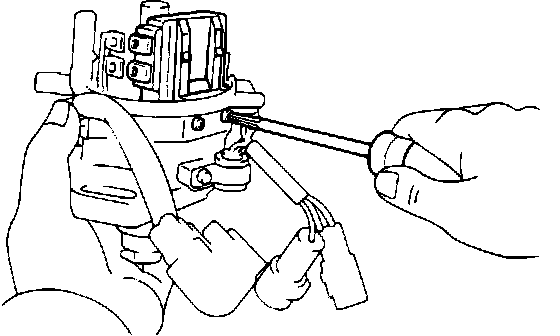

Igniter Wires:

6. Remove the three screws and disconnect the three wires from the terminals of the igniter assembly.

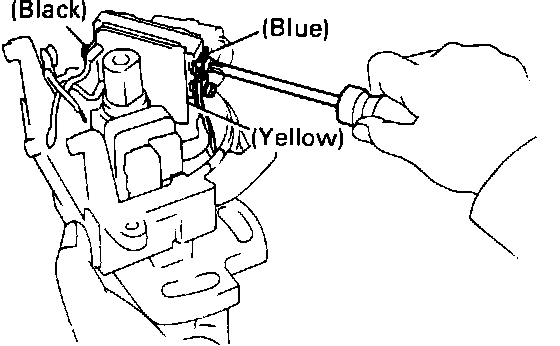

Igniter Assembly Removal And Installation:

7. Remove the two igniter retaining screws, remove the igniter assembly from the distributor housing.

8. To install reverse removal procedures.
