Mixture Control Solenoid: Description and Operation
Feedback Carburetor System Schematic:

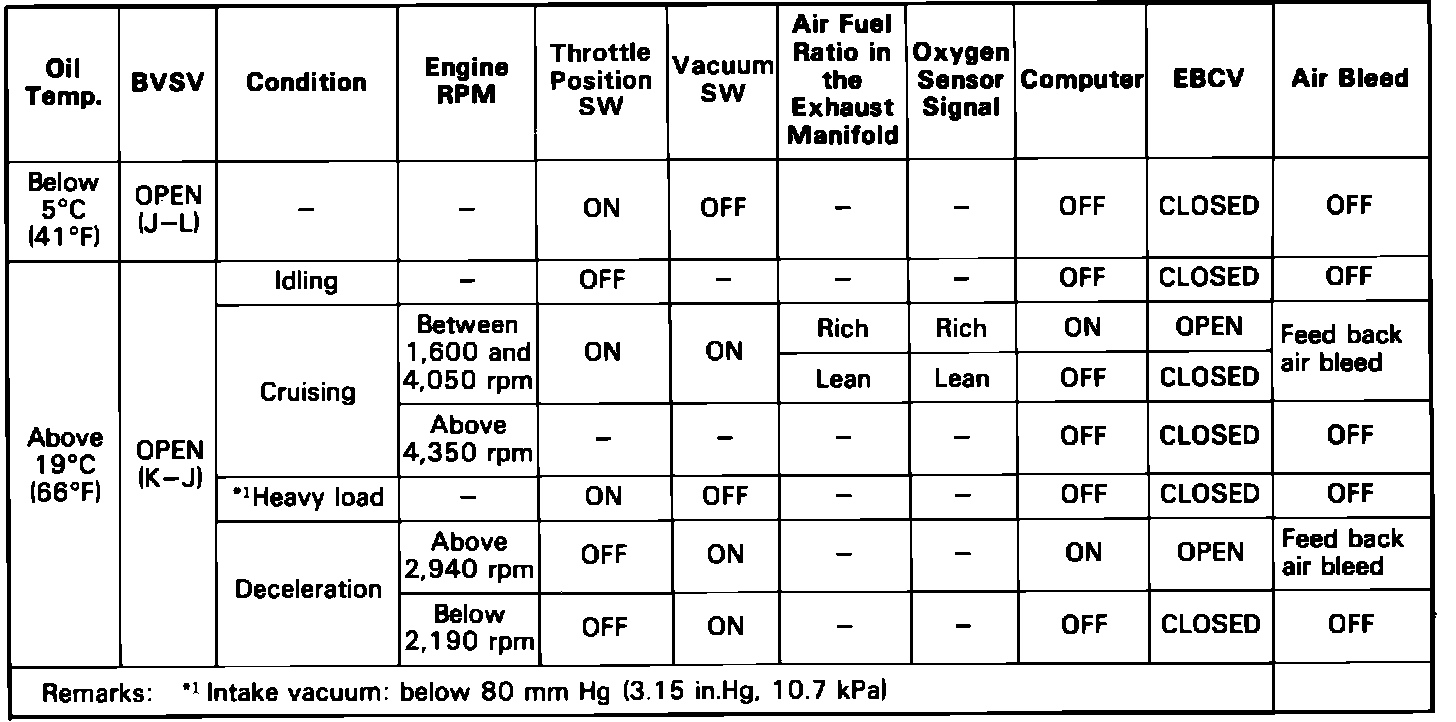

Fig. 68 Feedback Carburetor Operations Chart:
The
air/fuel mixture is controlled by the EBCV by opening and closing the
carburetor primary air bleed. The EBCV is controlled by the ECU with input from temperature sensors,
vacuum switches and the High Altitude Compensation Valve. The EBCV inputs ground through ECU terminal EBCV.
