Removal/Installation

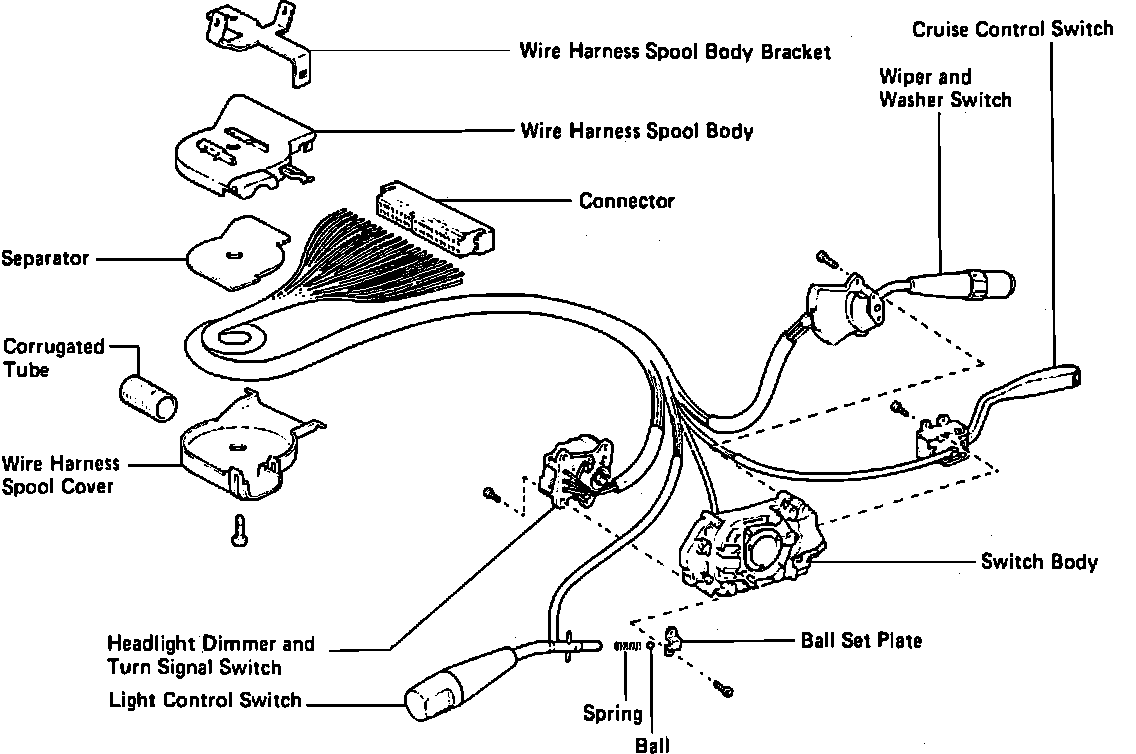

Fig. 3 Combination Switch Assembly:
1.
Disconnect battery ground cable.
2.
Remove horn pad and disconnect horn terminal.
3.
Remove steering wheel center pad set plate.
4.
Remove steering wheel nut.
5.
Using a steering wheel puller, remove steering wheel.
6.
Remove steering column upper and lower covers.
7.
Remove combination switch
Fig 3. 8.
Reverse procedure to install.
