Radiator Cooling Fan Control Module: Testing and Inspection

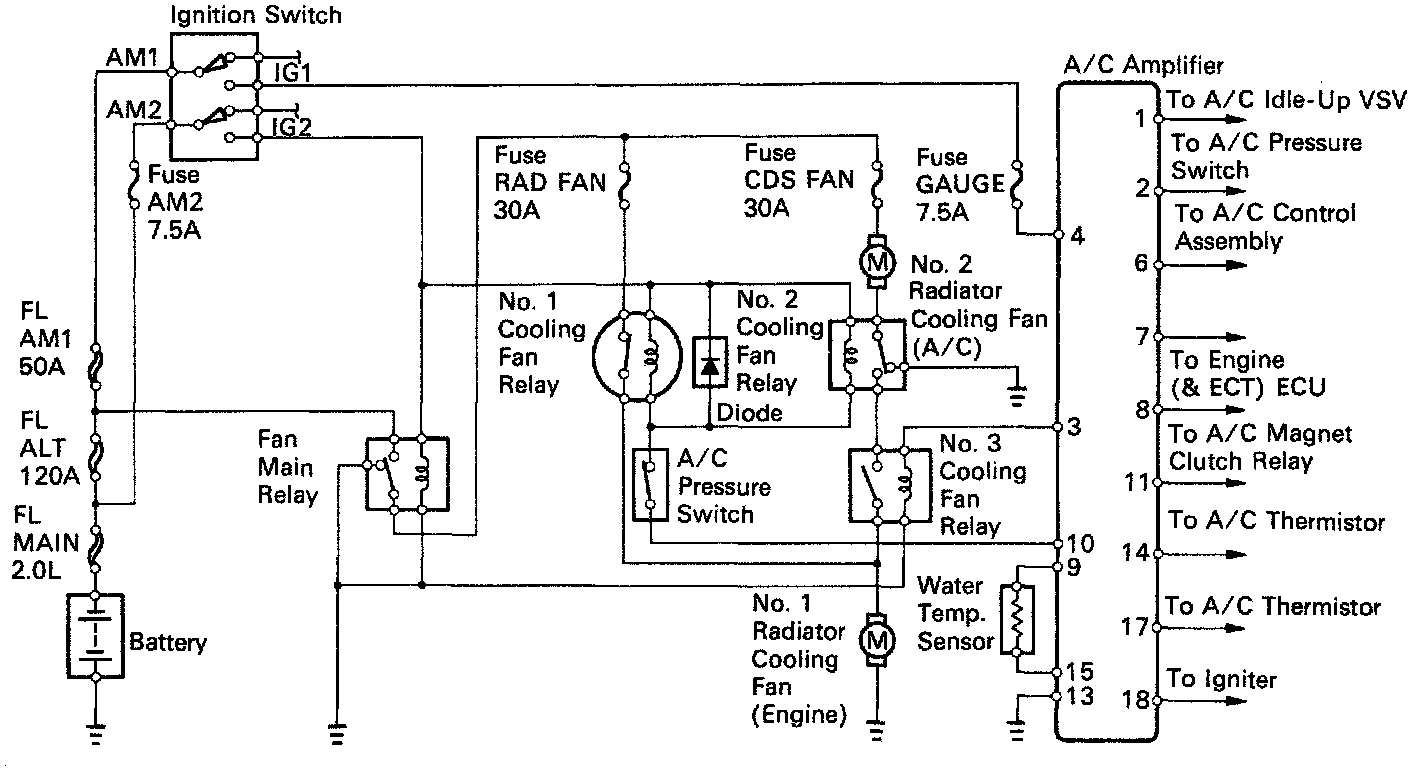

Radiator Cooling Fan Circuit Diagram:
Radiator Cooling Fan Connector View:
Radiator Fan Control System Testing Table:
Refer to images above when inspecting cooling fan ECU. This information applies only to vehicles with A/C, non A/C equipped cars do not have fan ECU.
