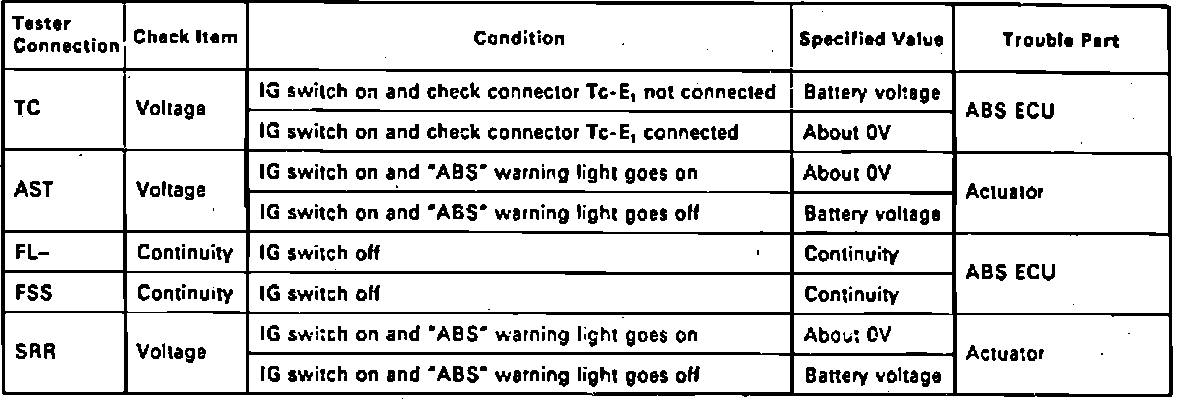

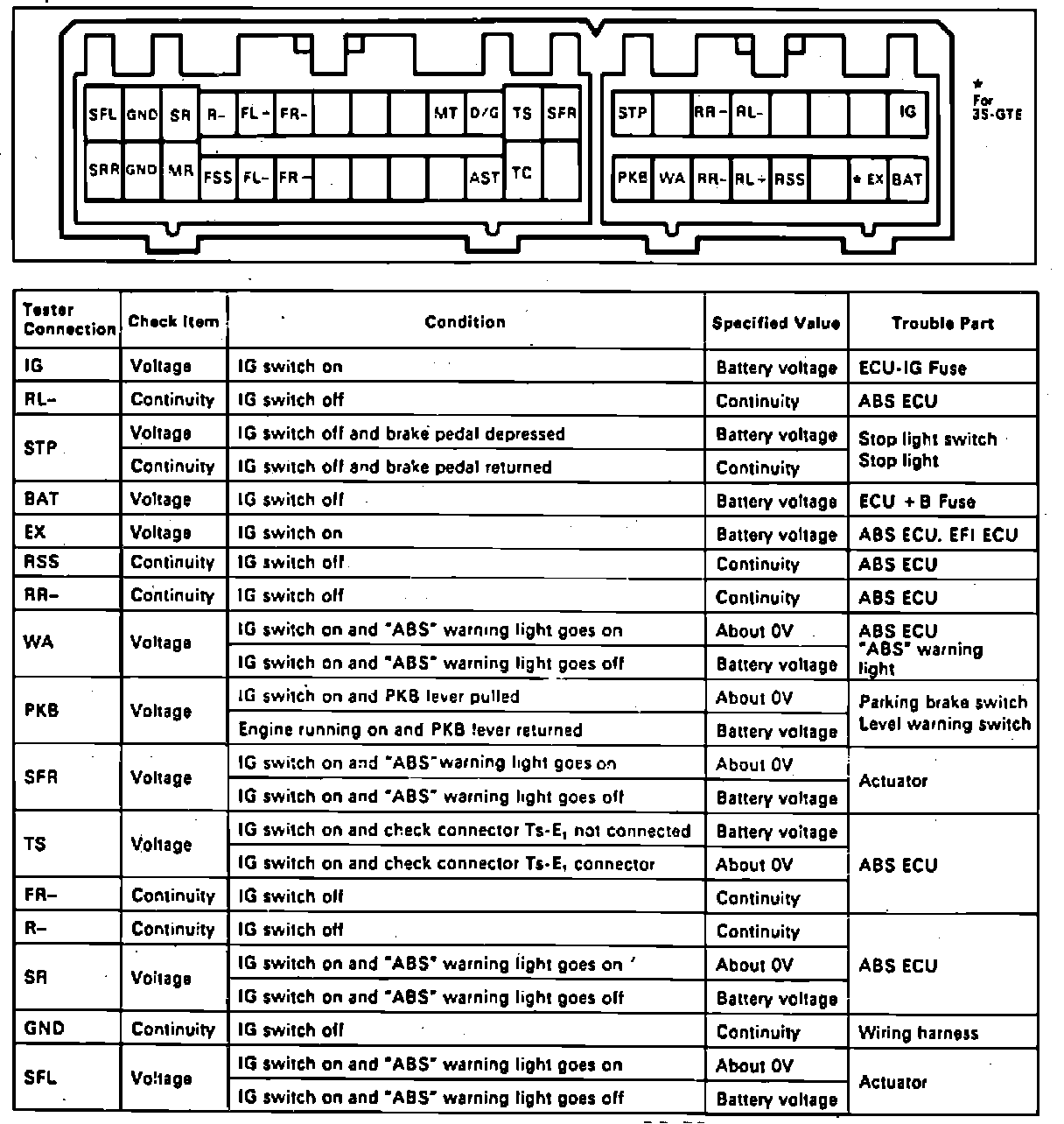

Fig. 78 Anti-lock Brake System Circuit Test (w/Computer Connector Connected) (Part 1 Of 2). MR2:

Fig. 78 Anti-lock Brake System Circuit Test (w/Computer Connector Connected) (Part 2 Of 2). MR2:
