Caster

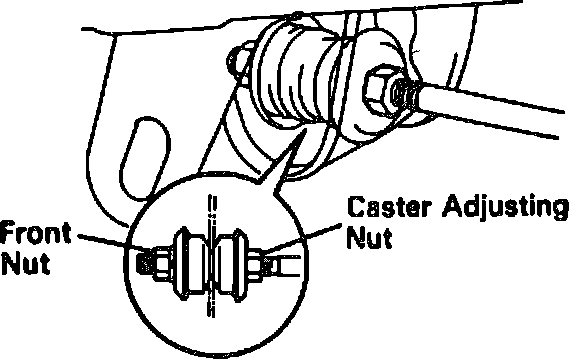

Fig. 2 Adjusting Caster:
Caster is adjusted by turning caster adjusting nut,
Fig. 2. Loosen strut bar front nut and turn camber adjusting nut to adjust. Each revolution of nut alters caster angle 3/10°.
Torque strut bar front nut to 83 ft. lbs.
