Passenger's Side Air Bag Module

1. Disarm SRS as outlined under "Air Bag System Disarming and Arming."
2. Remove glove compartment door finish plate.
3. Disconnect passenger air bag electrical connector.
4. Remove righthand door scuff plate, glove compartment door and lower insert, Fig. 41.

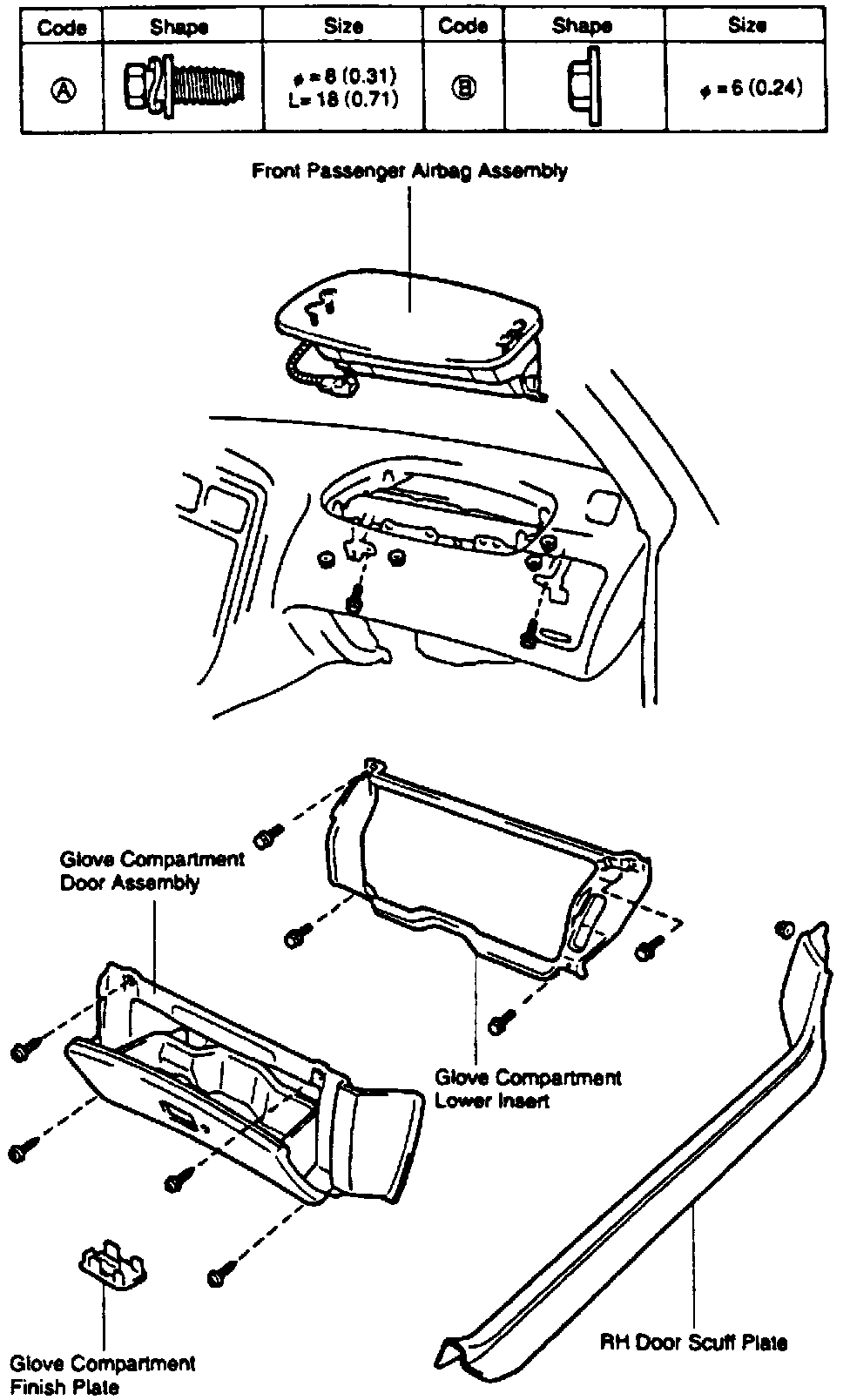

Fig. 41 Passenger Air Bag Replacement:

5. Remove passenger air bag mounting bolts and nuts.
6. Carefully remove passenger air bag module.
7. Reverse procedure to install, and tighten nuts and bolts to specifications.
