Oxygen Sensor: Testing and Inspection
Oxygen Sensor Inspection:
1.
Start engine and allow it to reach normal operating temperature.
2.
Connect DVOM to data link connector as shown.
3.
Perform the following test.
���Oxygen Sensor Inspection:
3.

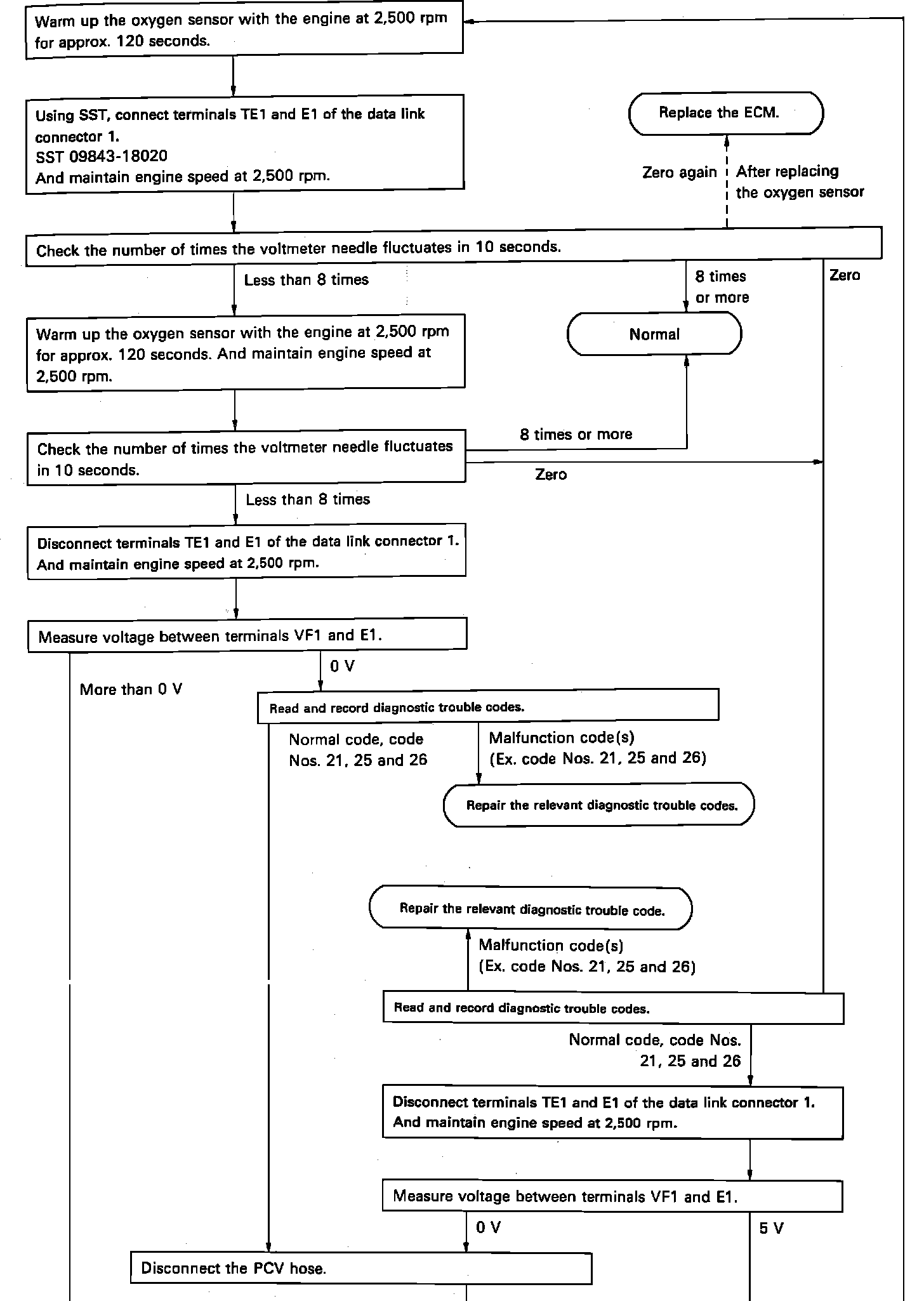

Refer to flowchart for testing procedure.
