Code 71

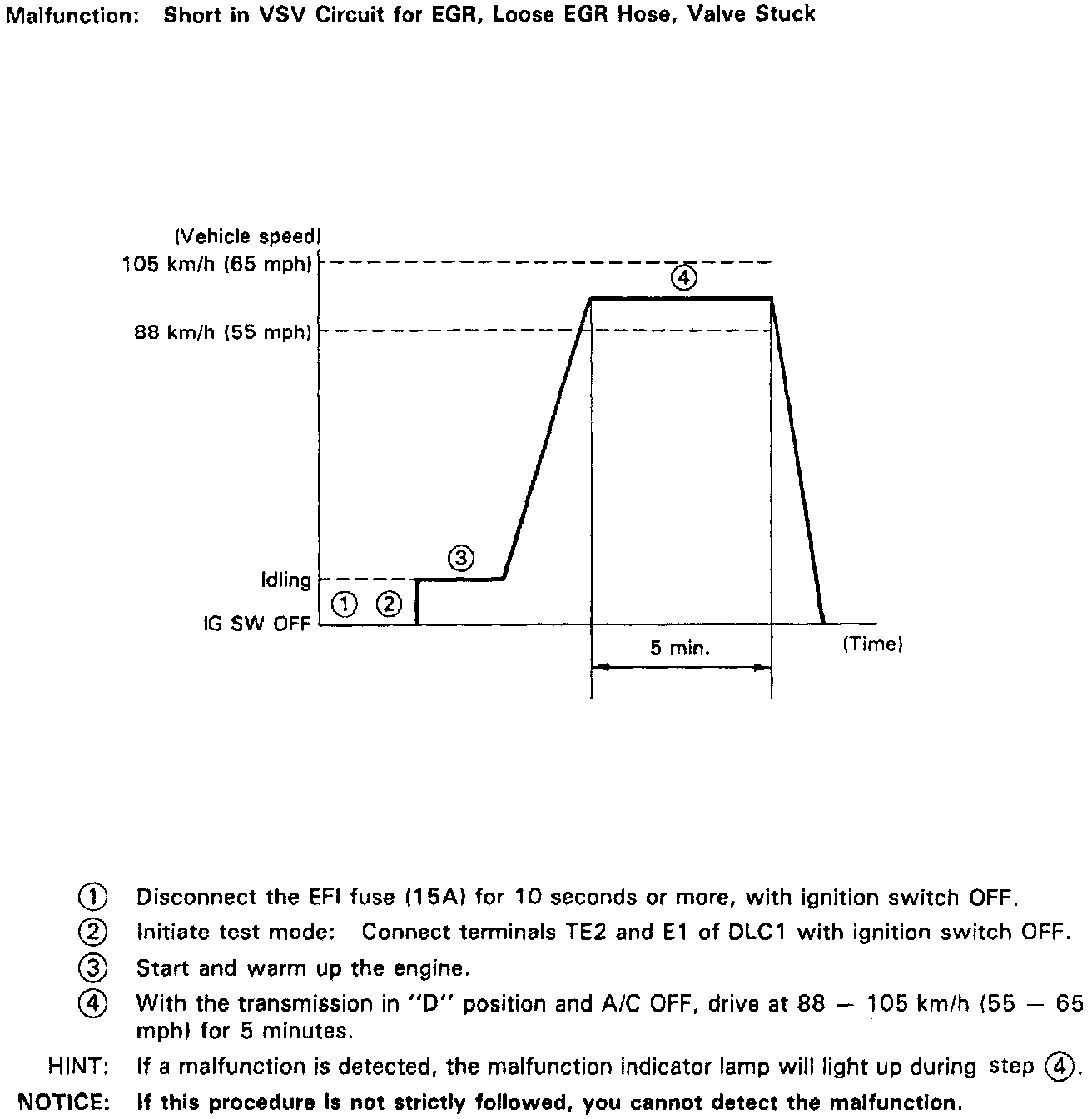

The purpose of the driving pattern is to simulate diagnostic trouble code detecting condition after diagnostic trouble code is recorded and to check that the malfunction is corrected when the repair is completed. confirming that diagnostic trouble code is no longer detected.
DTC No. 71 EGR System Malfunction.
