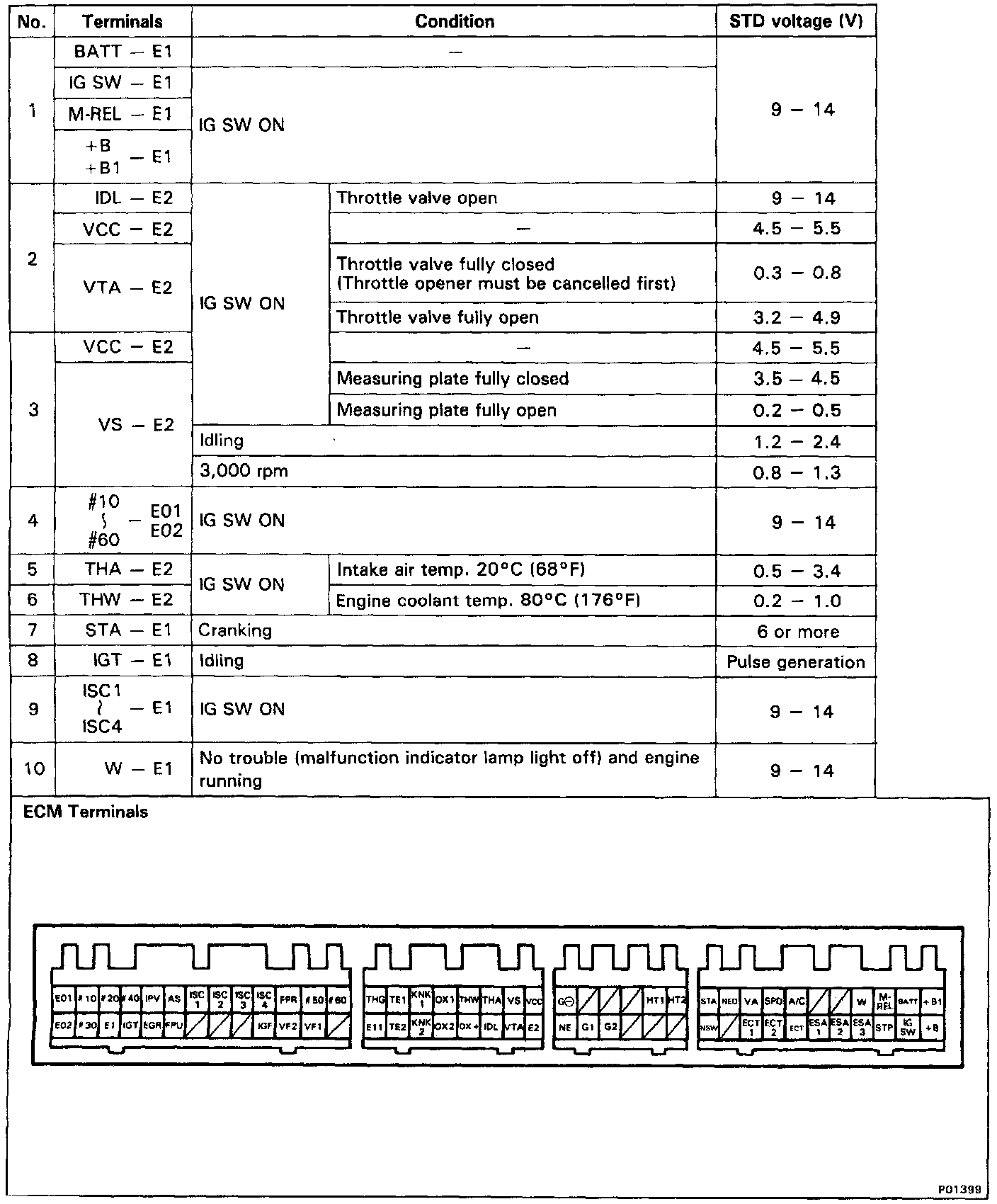

Standard Values of ECM Terminals
If a problem is found during an inspection refer to the corresponding diagnostic chart. For example: If a problem is found during inspection no. 2 refer to diagnostic chart no. 2. If a problem is found during inspection no. 3 refer to diagnostic chart no. 3, etc.
