Passenger's Side Air Bag Module

1. Disarm SRS as outlined under Air Bag System Disarming and Arming.
2. Remove glove compartment door.
3. Remove air bag electrical connector from bracket and disconnect
4. Remove instrument panel, Fig. 40.

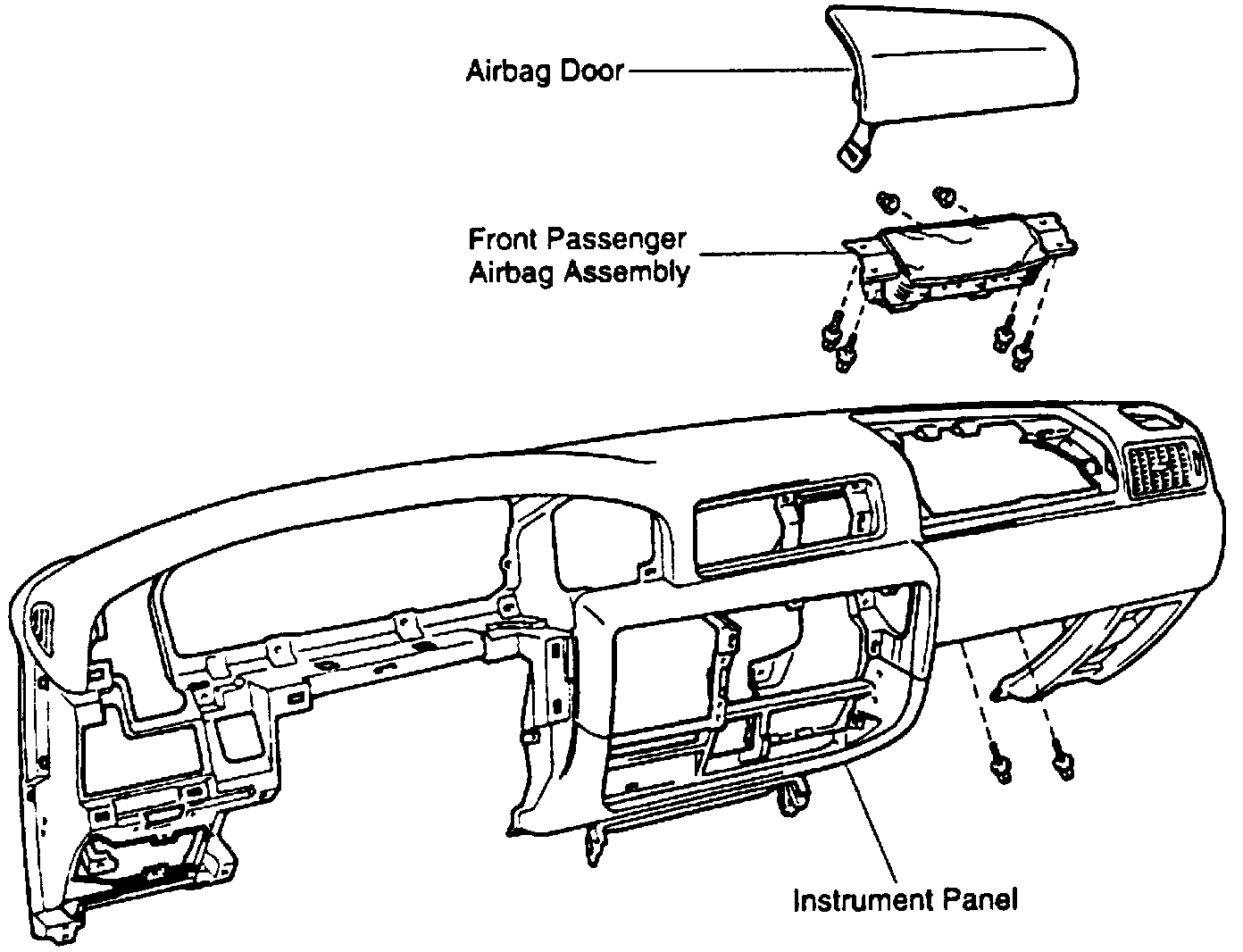

Fig. 40 Passenger Air Bag Replacement:

5. Remove front passenger air bag mounting nuts and bolts, then assembly.
6. Remove clips and air bag door.
7. Reverse procedure to install, and tighten bolts and nuts to specifications.
