Transfer Case - Shift Lever Vibration/Rattle

REF.: TRANSMISSION & CLUTCH

NO.: TC94-002

DATE: APRIL 29, 1994

MODEL: LAND CRUISER (DJ)

TRANSFER CASE SHIFT LEVER VIBRATION/RATTLE

Transfer case shift lever vibration/rattle may occur during the following driving conditions:

1) Acceleration

2) Steady speeds

REPAIR PROCEDURE:

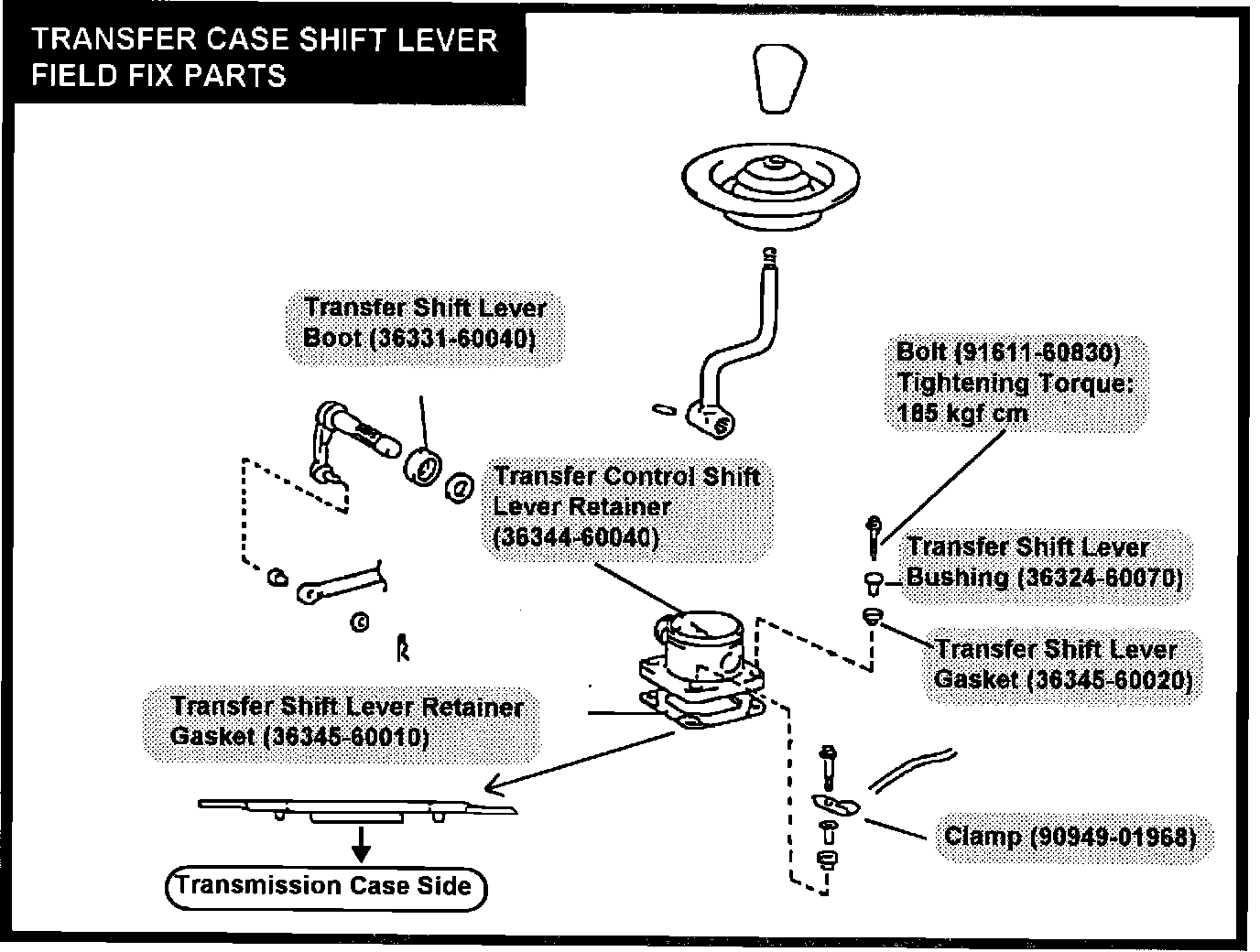

Replace the parts shown if the above condition is evident.

TRANSFER CASE SHIFT LEVER VIBRATION/RATTLE

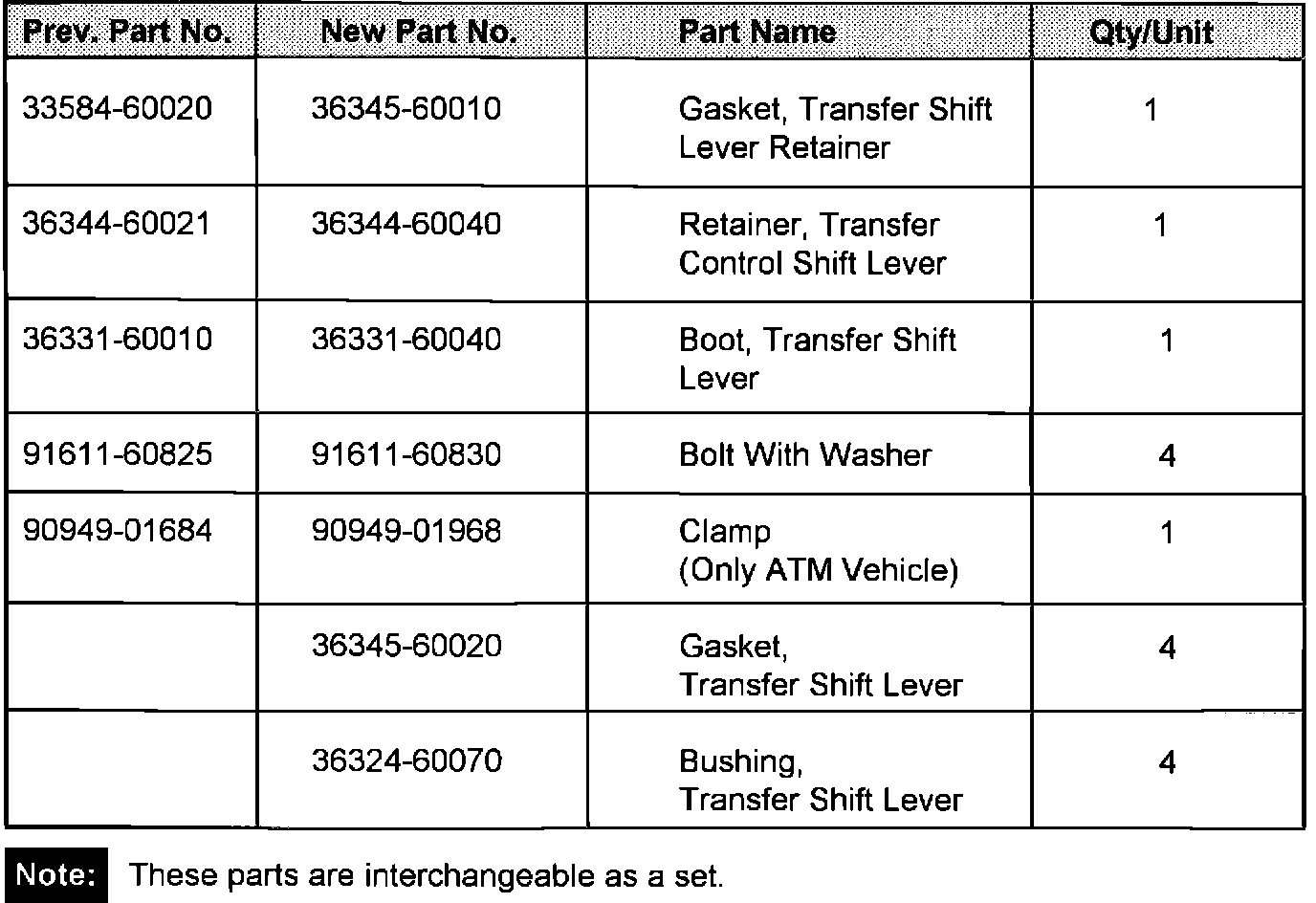

PART NUMBER INFORMATION:

PRODUCTION EFFECTIVE:

From March, 1994
