Throttle Position Sensor: Testing and Inspection

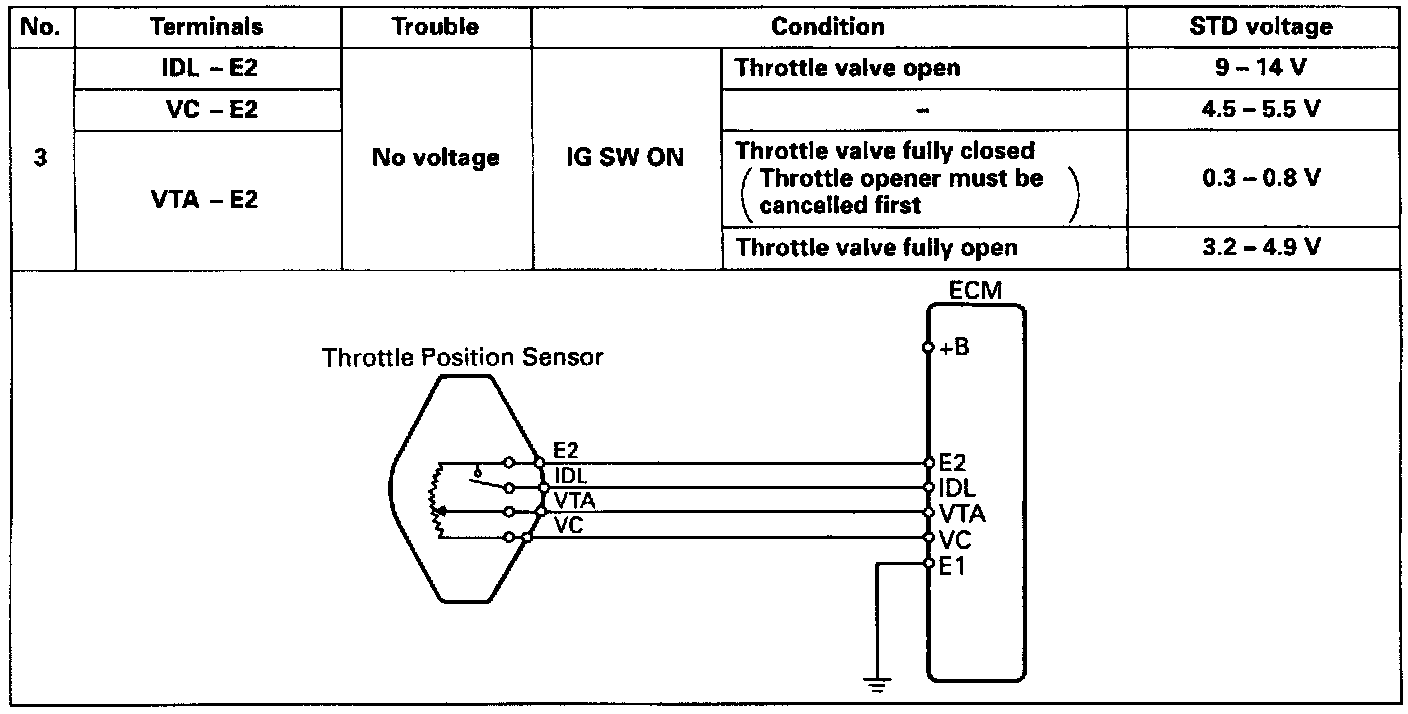

Throttle Position Sensor (TPS) Circuit Test - IDL-E2 Section:
Throttle Position Sensor (TPS) Circuit Test - VC Section:
Throttle Position Sensor (TPS) Circuit Test - VTA Section:
-------------------------
See also: Throttle Body inspection procedures under Fuel Delivery and Air Induction.
Throttle Body
