Vehicle Speed Sensor: Locations




VEHICLE SPEED SENSORS 1 AND 2

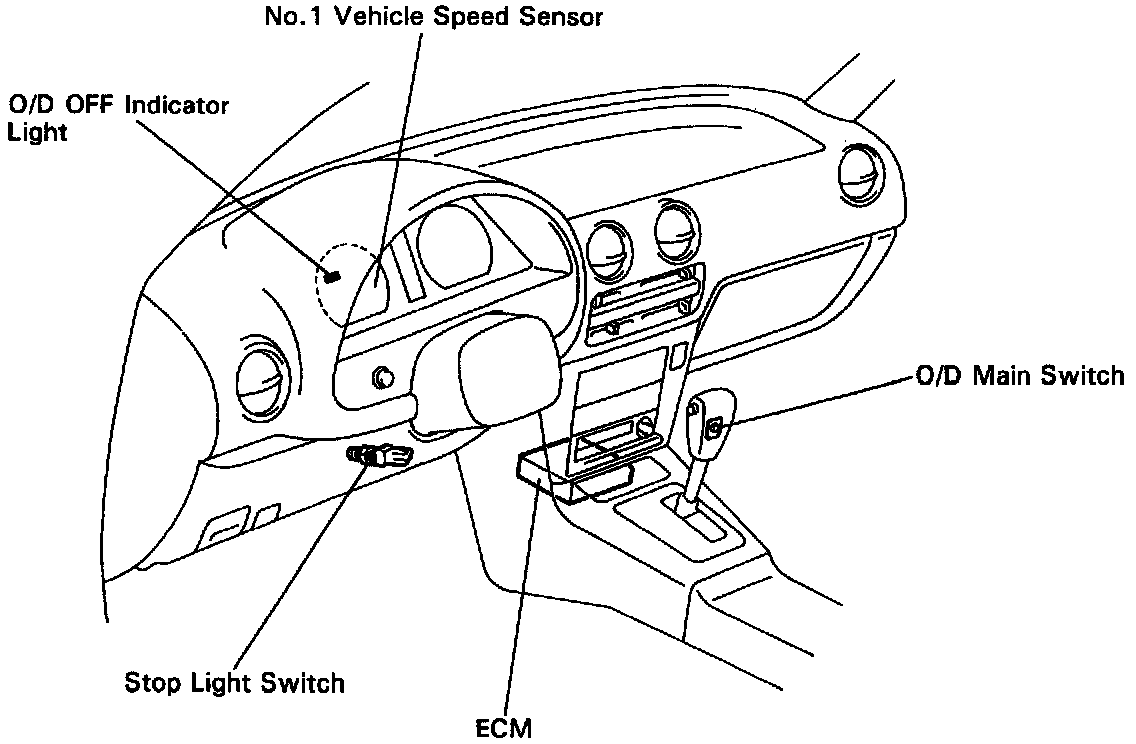

Speed Sensor # 1 (SPD) is located inside the speedometer.

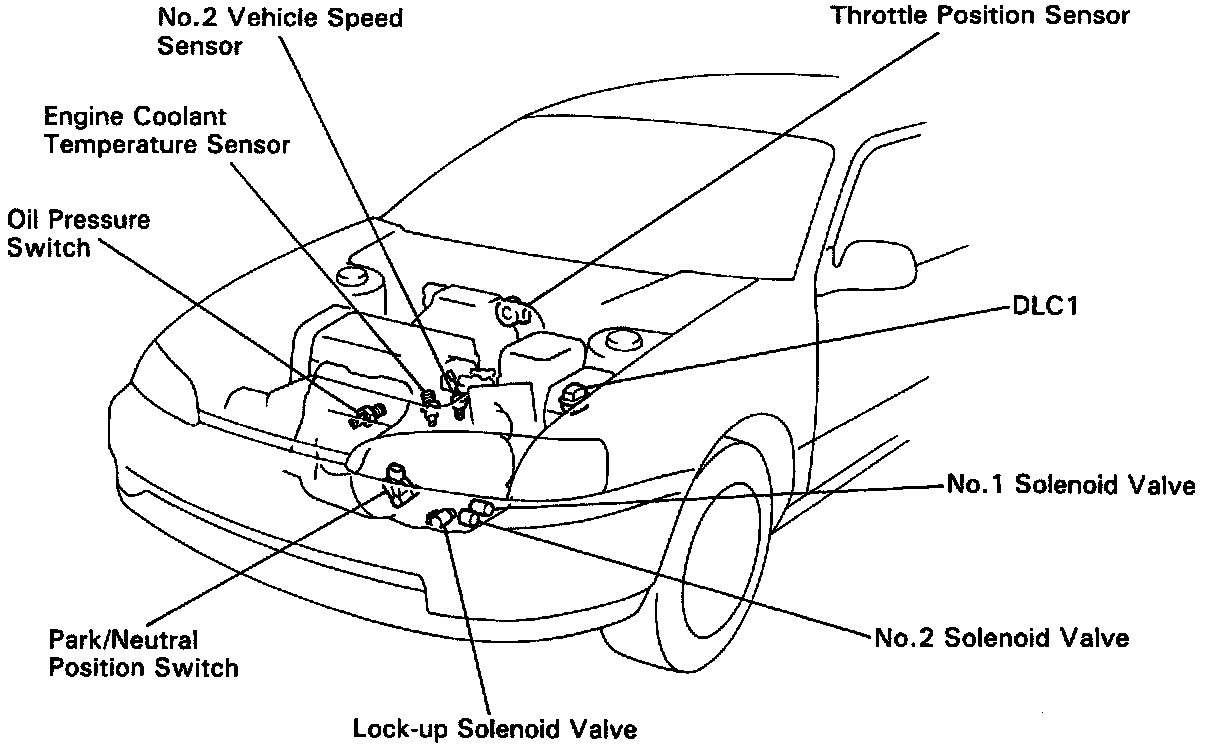

Speed Sensor # 2 (SP2) is located in the transaxle, at the Speedometer cable connection.
