Symptom Related Diagnostic Procedures

Part 1 Of 2:

Part 2 Of 2:

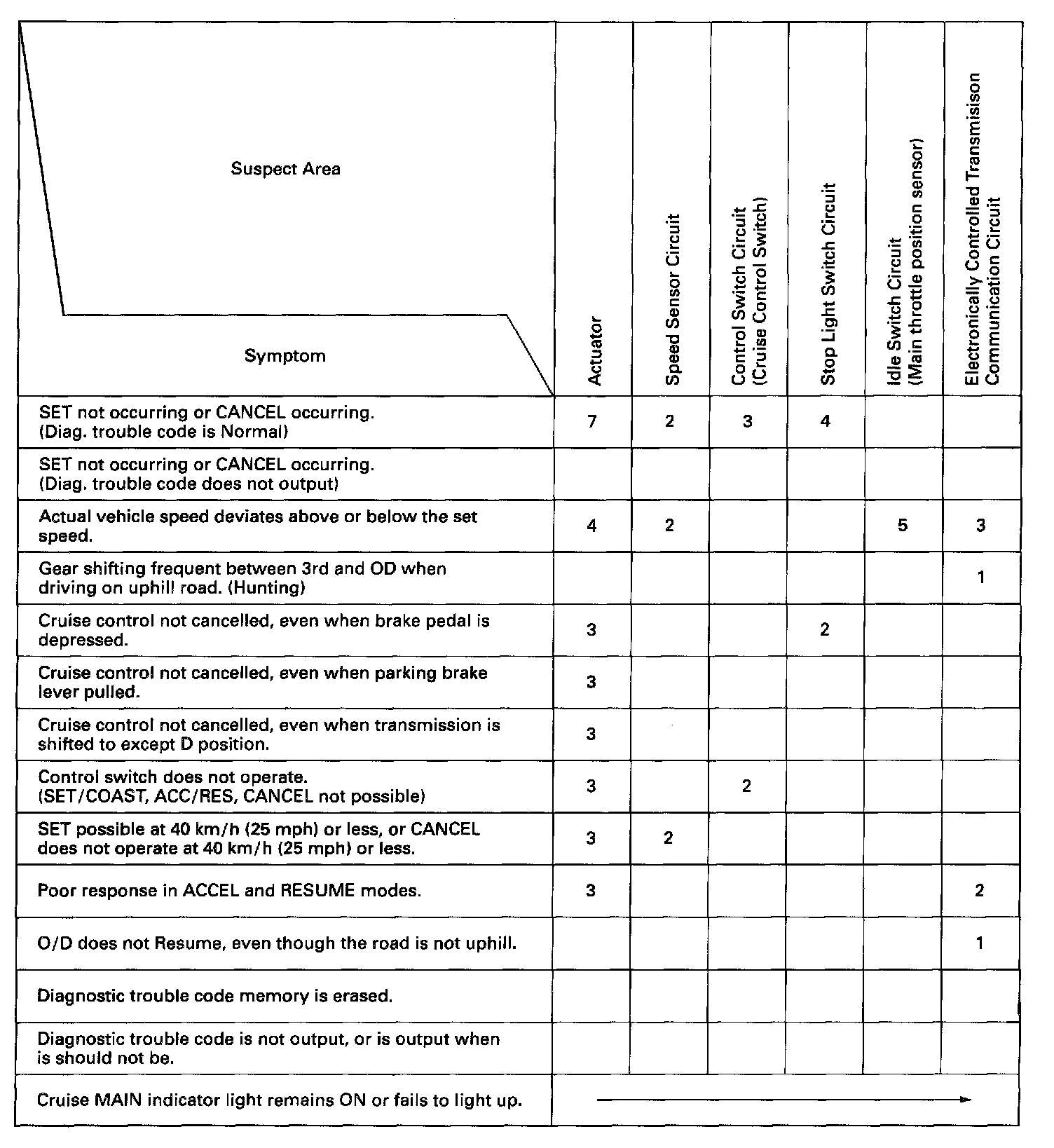

If a normal code is displayed during the diagnostic trouble code check but the trouble still occurs (reappears), perform troubleshooting for each problem symptom, checking the circuits for each symptom in the order given in the table.
