Upper Panel
REMOVAL
1. REMOVE CENTER CLUSTER FINISH PANEL
2. REMOVE HEATER CONTROL ASSEMBLY a.

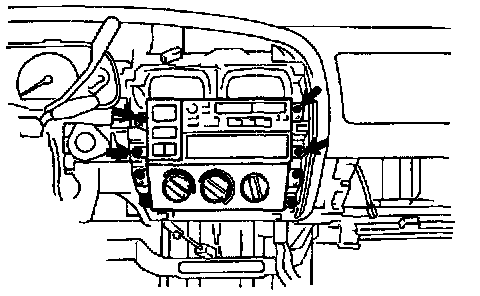

Remove the 4 screws and heater control assembly, with the radio, then disconnect the connectors.
b.

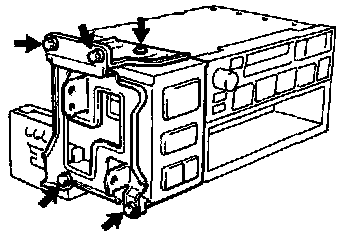

Remove the 4 bolts, screw and heater control assembly.
INSTALLATIONInstallation is in the reverse order of removal.
