A/C Idle-Up Circuit
A/C IDLE-UP CIRCUIT CIRCUIT DESCRIPTION When the air conditioning operates (increased engine load), this circuit switches the vacuum switching valve
(VSV) ON and increases the amount of bypass air to increase the
idle speed, thus maintaining driveability.
WIRING DIAGRAM VSV For A/C Idle-Up Circuit:

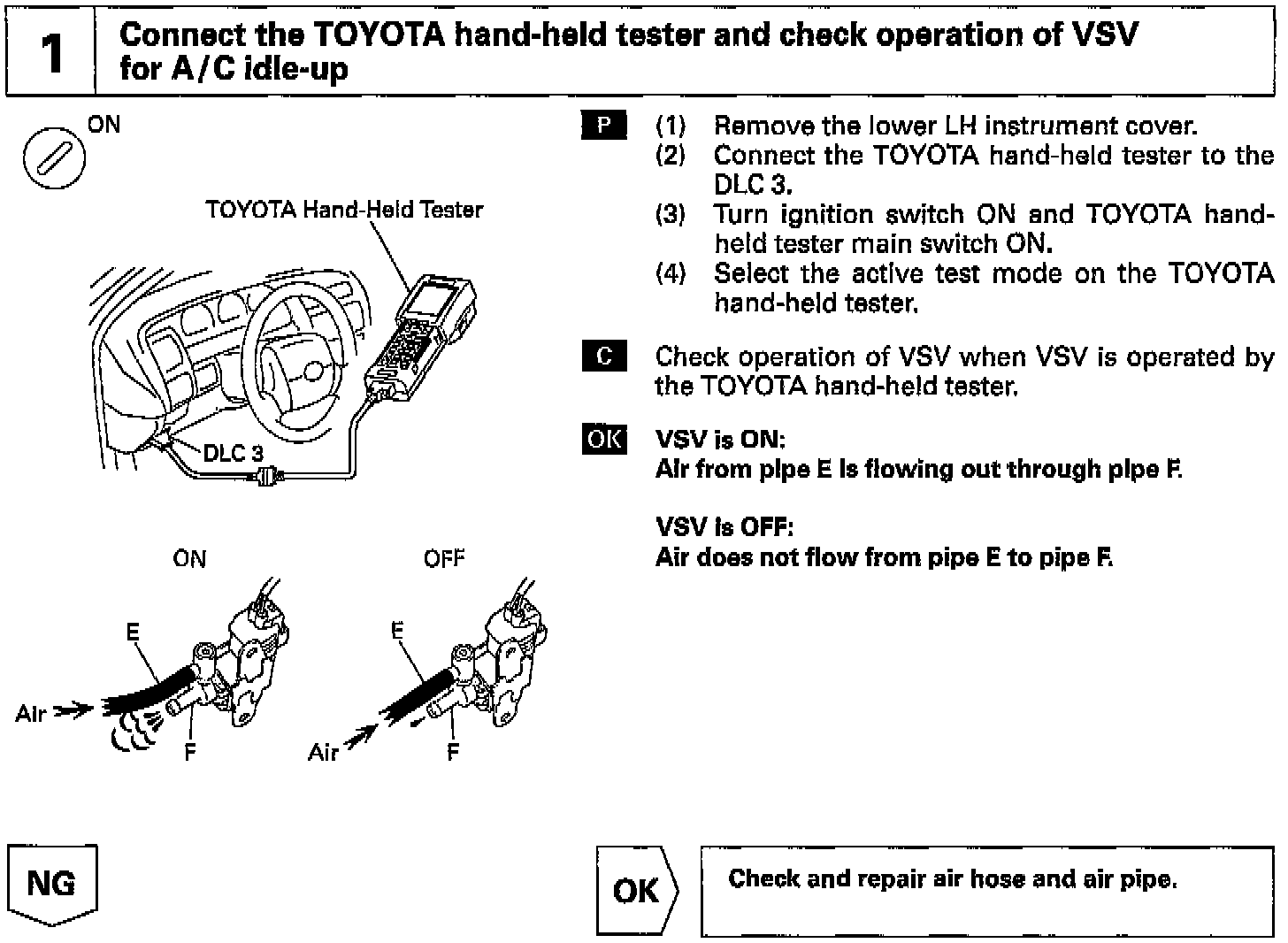

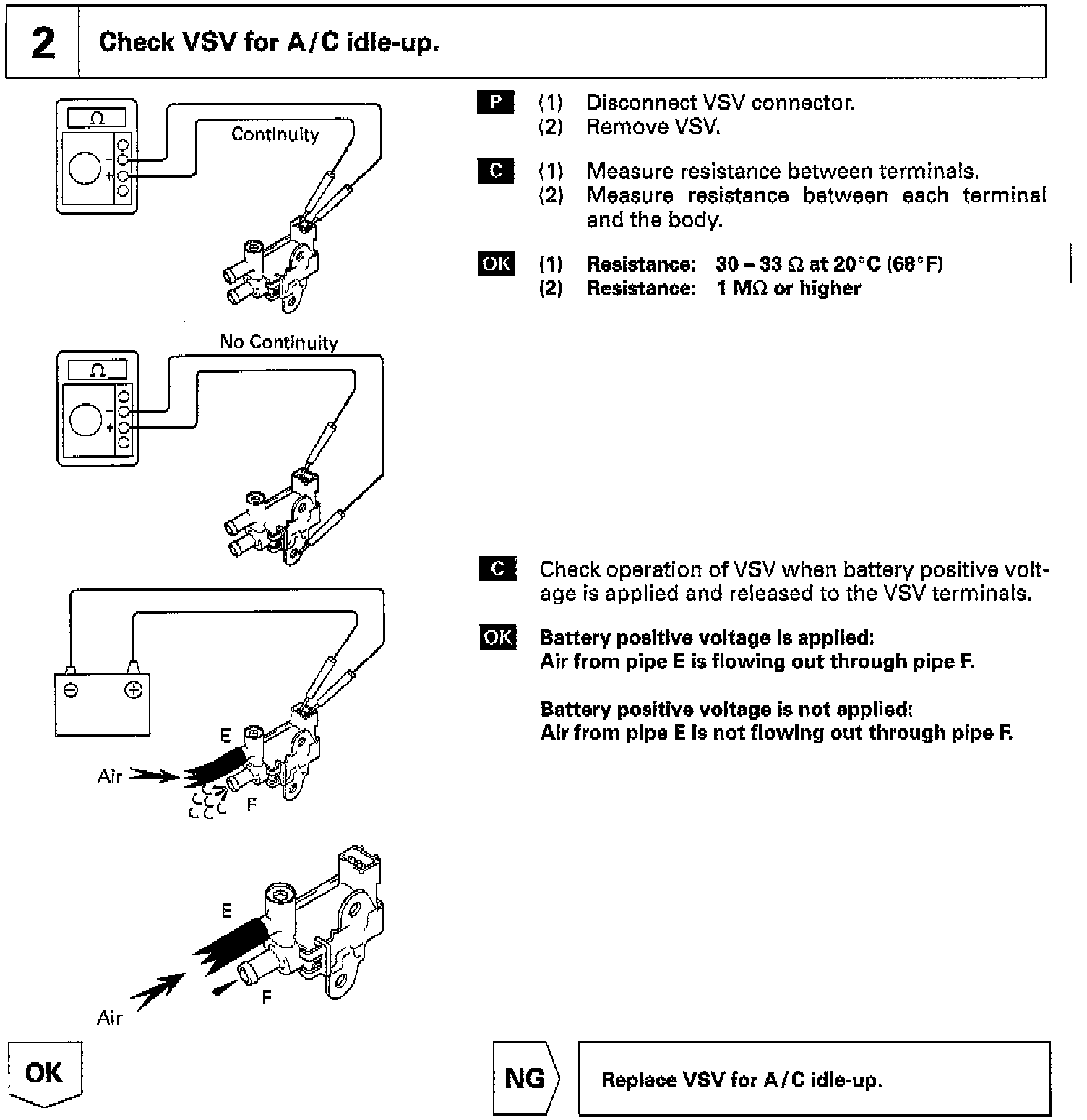

INSPECTION PROCEDURE Toyota hand-held tester OBD II scan tool (excluding Toyota hand-held tester)
