Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION SENSOR REMOVAL NOTE: Installation is in the reverse order of removal.
1.
REMOVE RH FENDER APRON SEAL.
2.

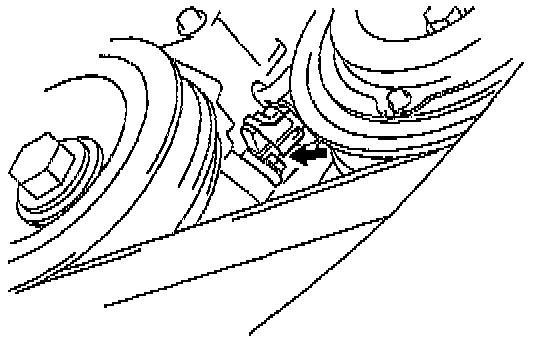

REMOVE
CRANKSHAFT POSITION SENSOR.
-
Remove the bolt and disconnect the
crankshaft position sensor.
Torque: 8 Nm (69 in.lb). -
Disconnect the
crankshaft position sensor connector.
