Ignition Coil: Service and Repair

IGNITION COILS REMOVAL

NOTE: Installation is in the reverse order of removal.

1. REMOVE V-BANK COVER

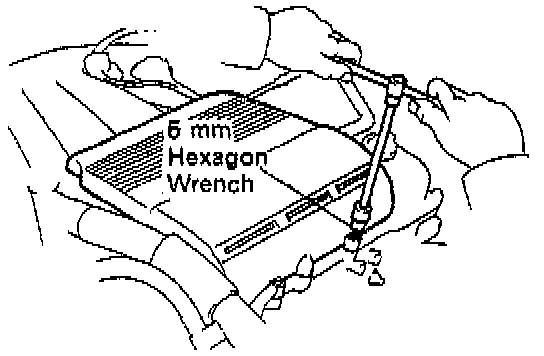

- Using a 5 mm hexagon wrench, remove the 2 cap nuts.
- Disconnect the 2 clips, remove the V-bank cover.

INSTALLATION HINT: For fixing the V-bank cover, push on the cover until a 'click is felt.

2. REMOVE IGNITION COILS



- Disconnect the 6 connectors.
- Remove the 6 bolts and 6 ignition coils from the RH and LH cylinder heads.

Torque: 8 Nm (69 in.lb)
