O/D Main Switch & O/D Off Indicator Light Circuit

O/D MAIN SWITCH & O/D OFF INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and come on when it is pushed out. In O/D main switch OFF position, the 0/D OFF indicator lights up, and the ECM prohibits shifting to overdrive. The ECM also causes the 0/D OFF indicator light to blink when a malfunction is detected. In this case, connecting the OBD-II scan tool or Toyota hand-held tester to the DLC3 can display the DTC.

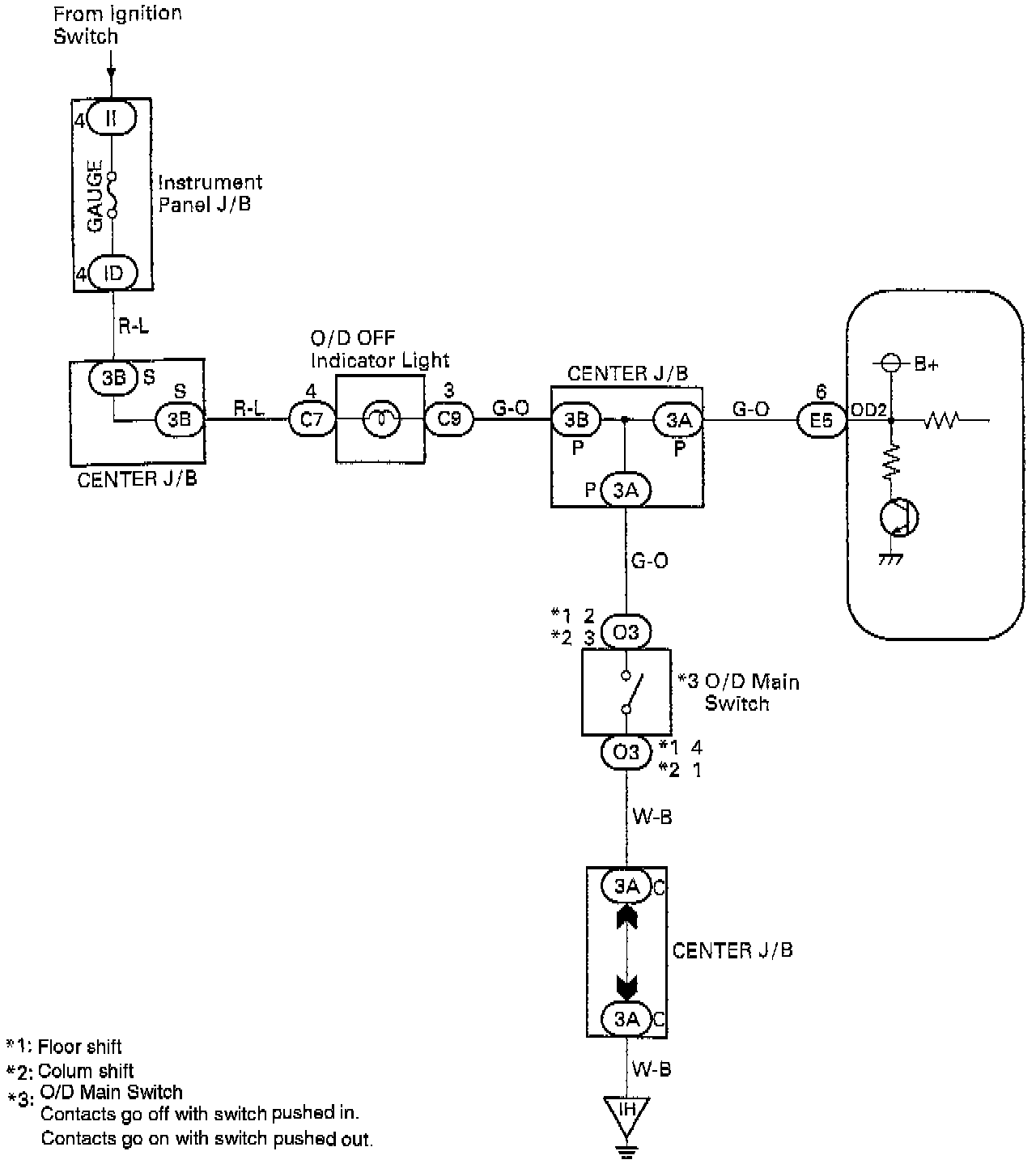

WIRING DIAGRAM

O/D Main Switch And O/D OFF Indicator Circuit*1 Floor shift*2 Column shift*3 O/D Main Switch: In=OFF / Out=ON:






INSPECTION PROCEDURE

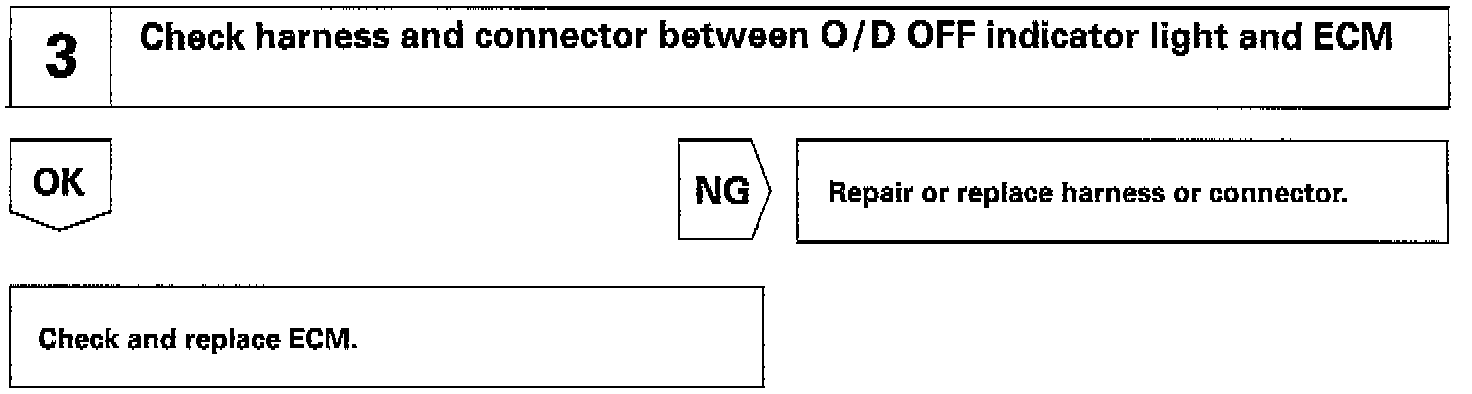

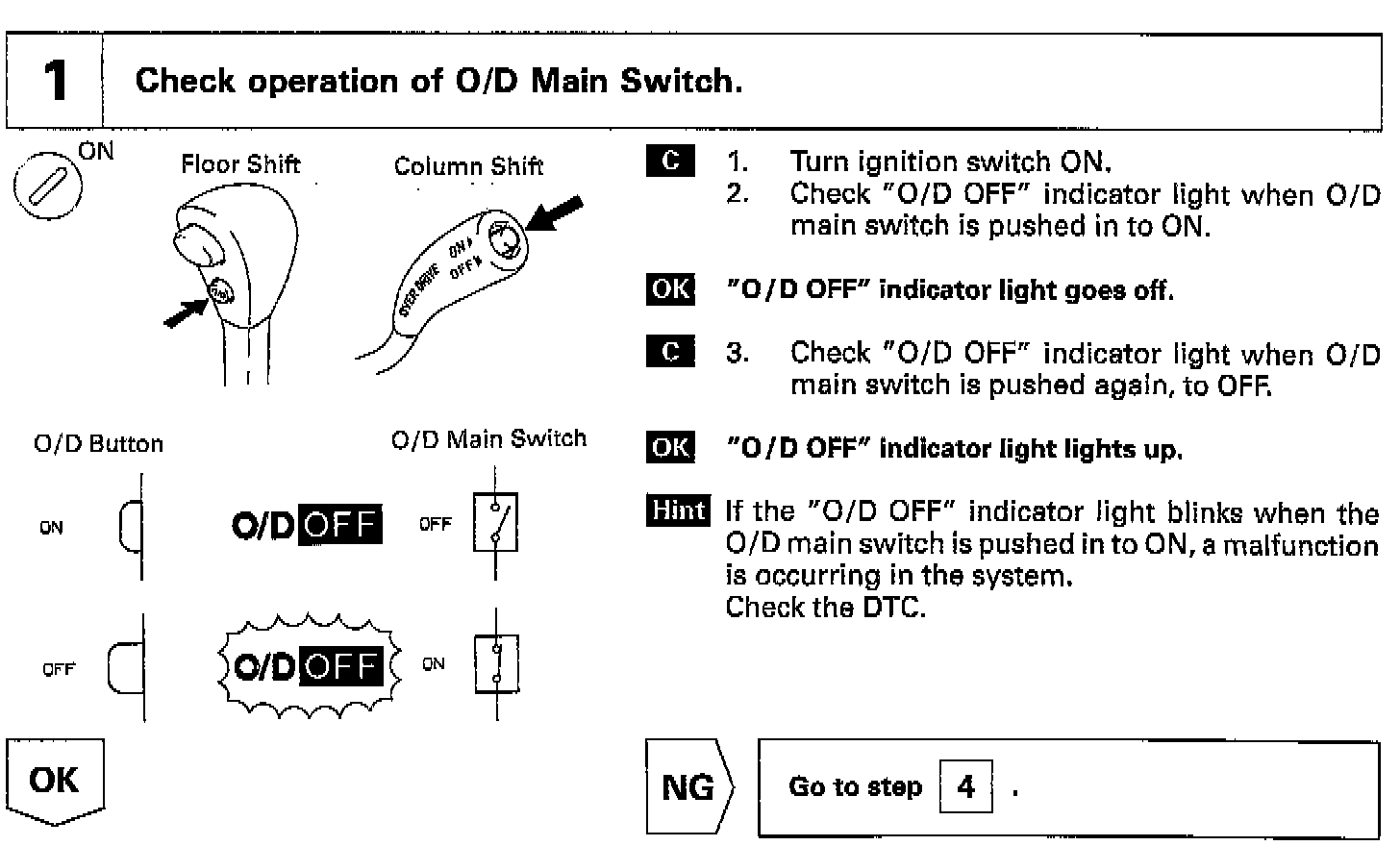

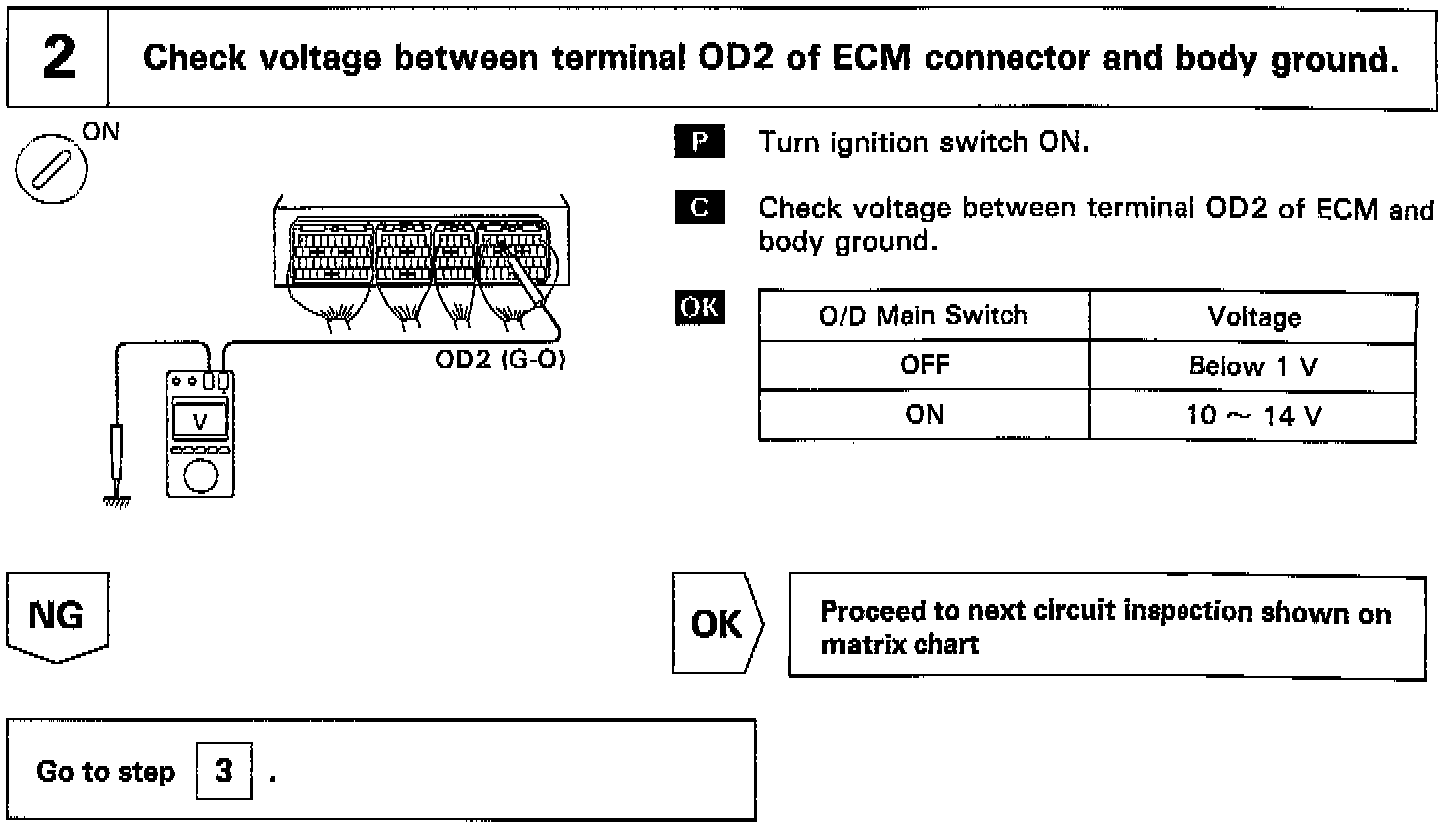

O/D Off Indicator light does not light up.

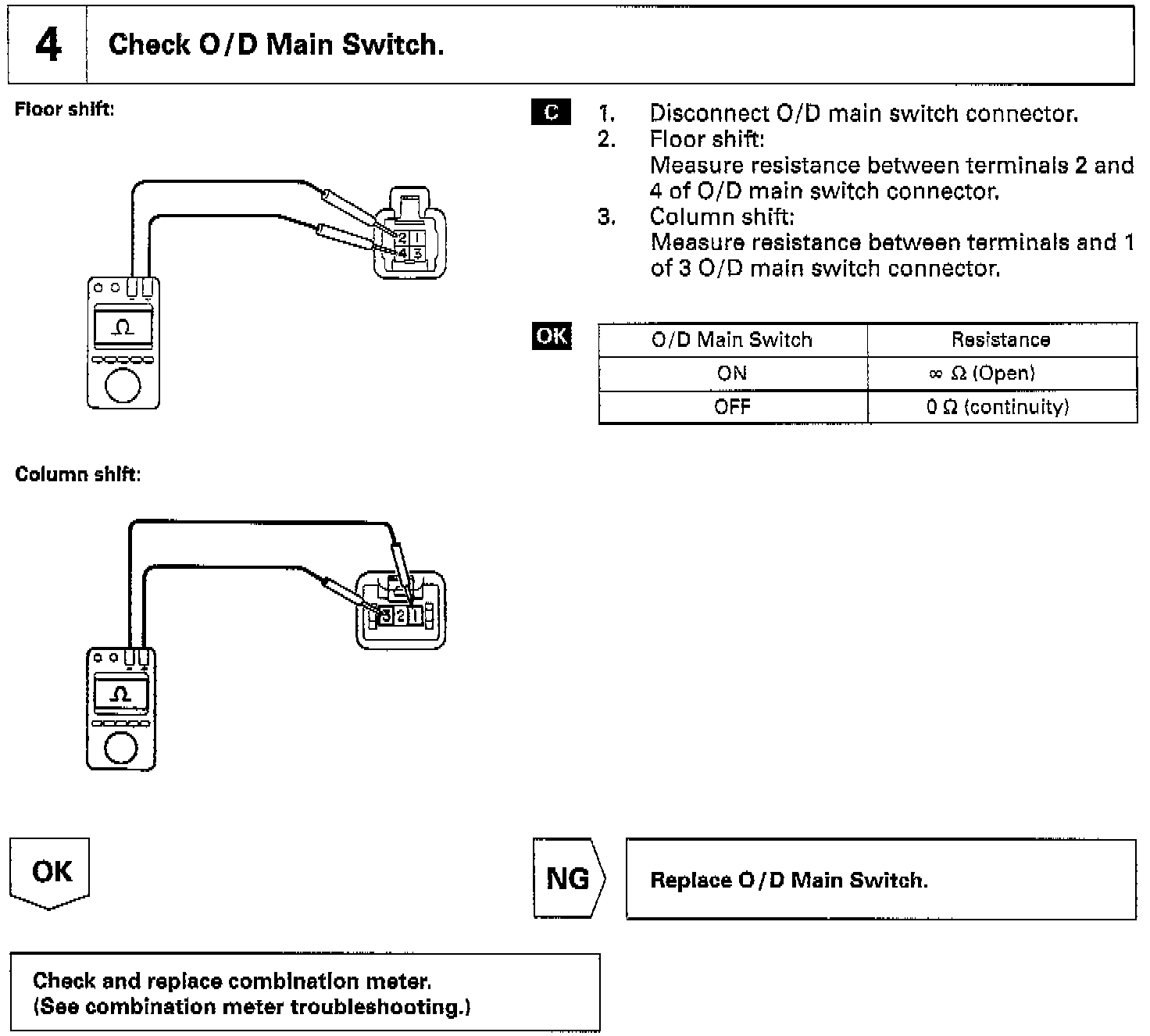

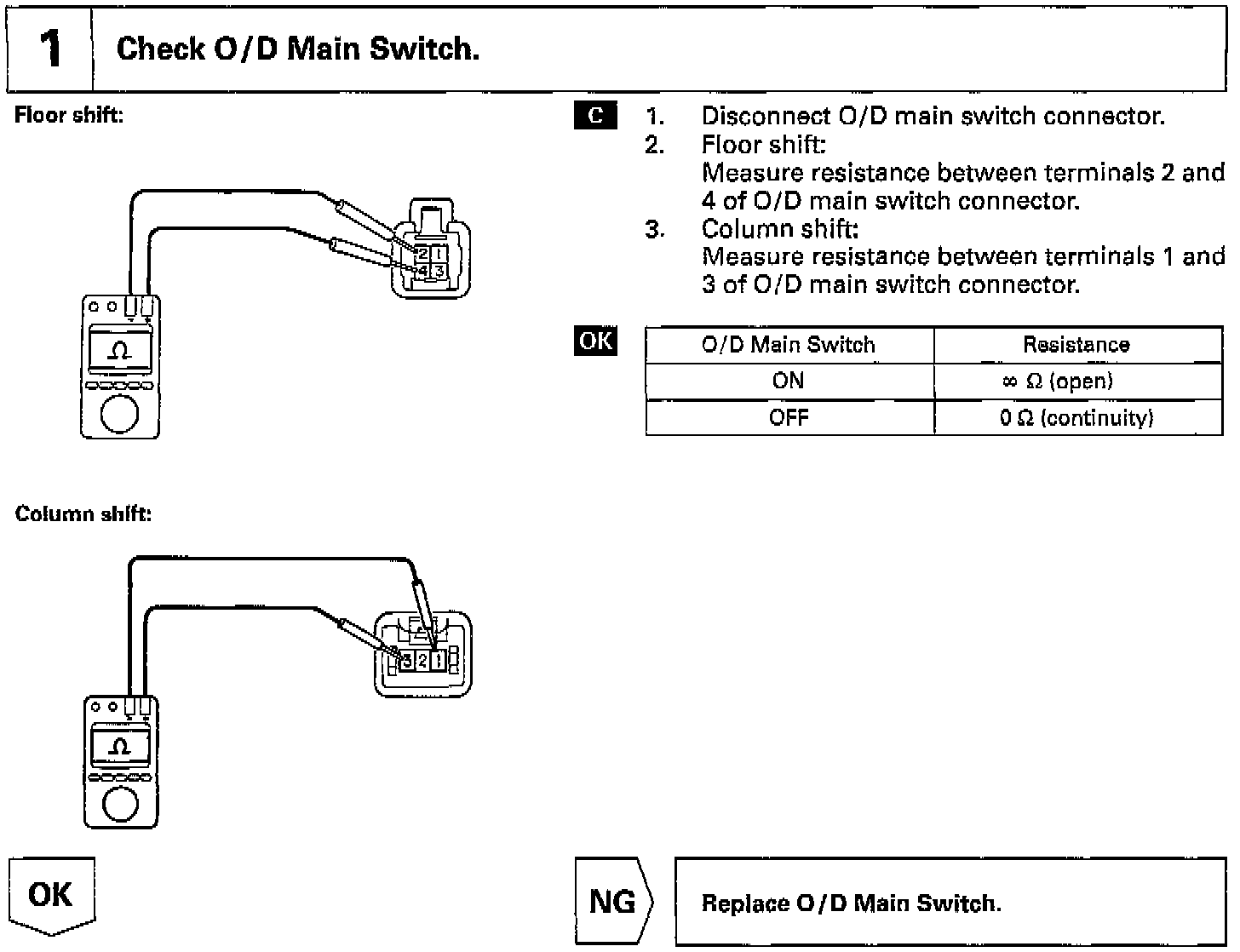

O/D Off Indicator light remains ON.
