Torque Specifications

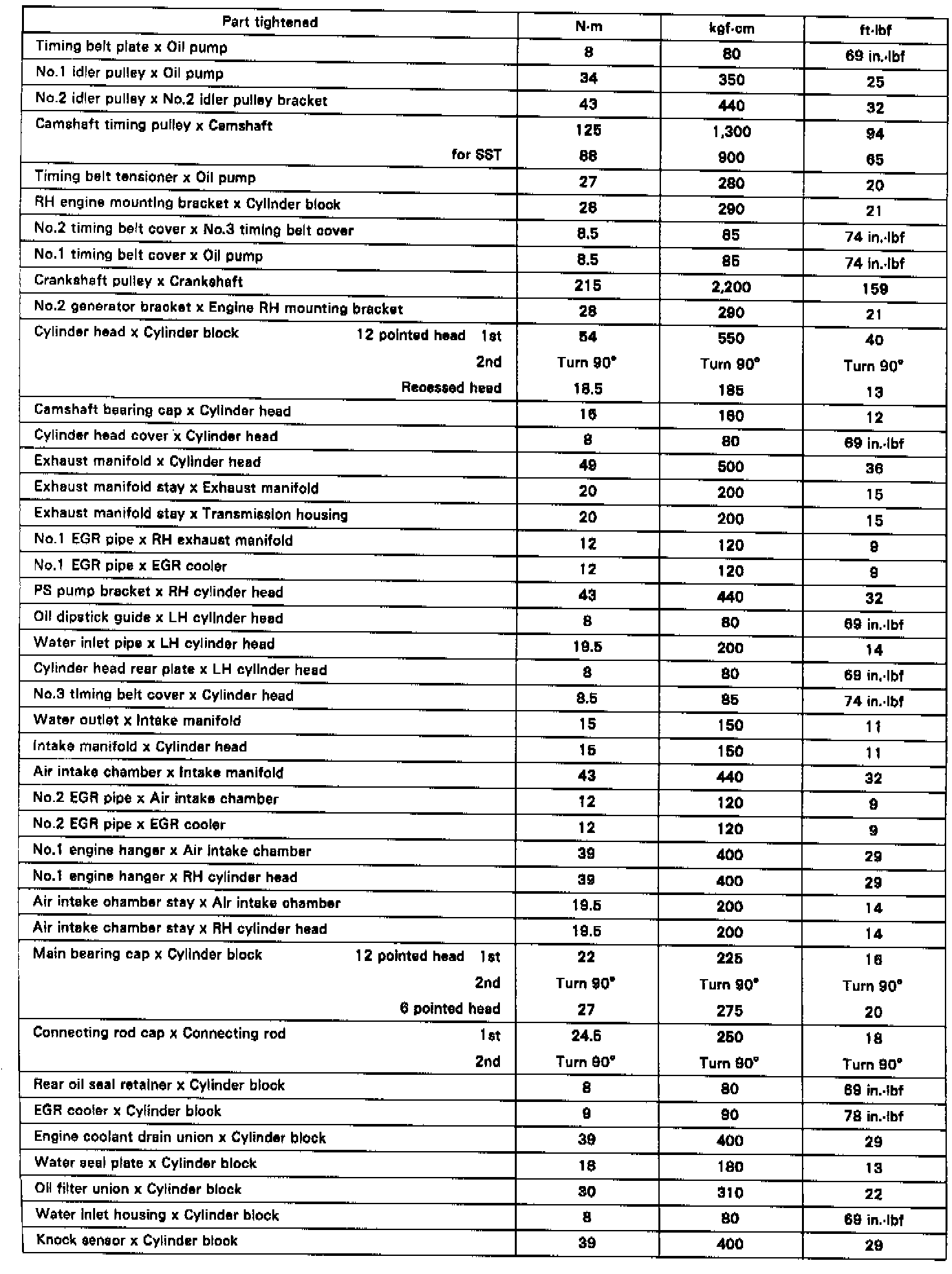

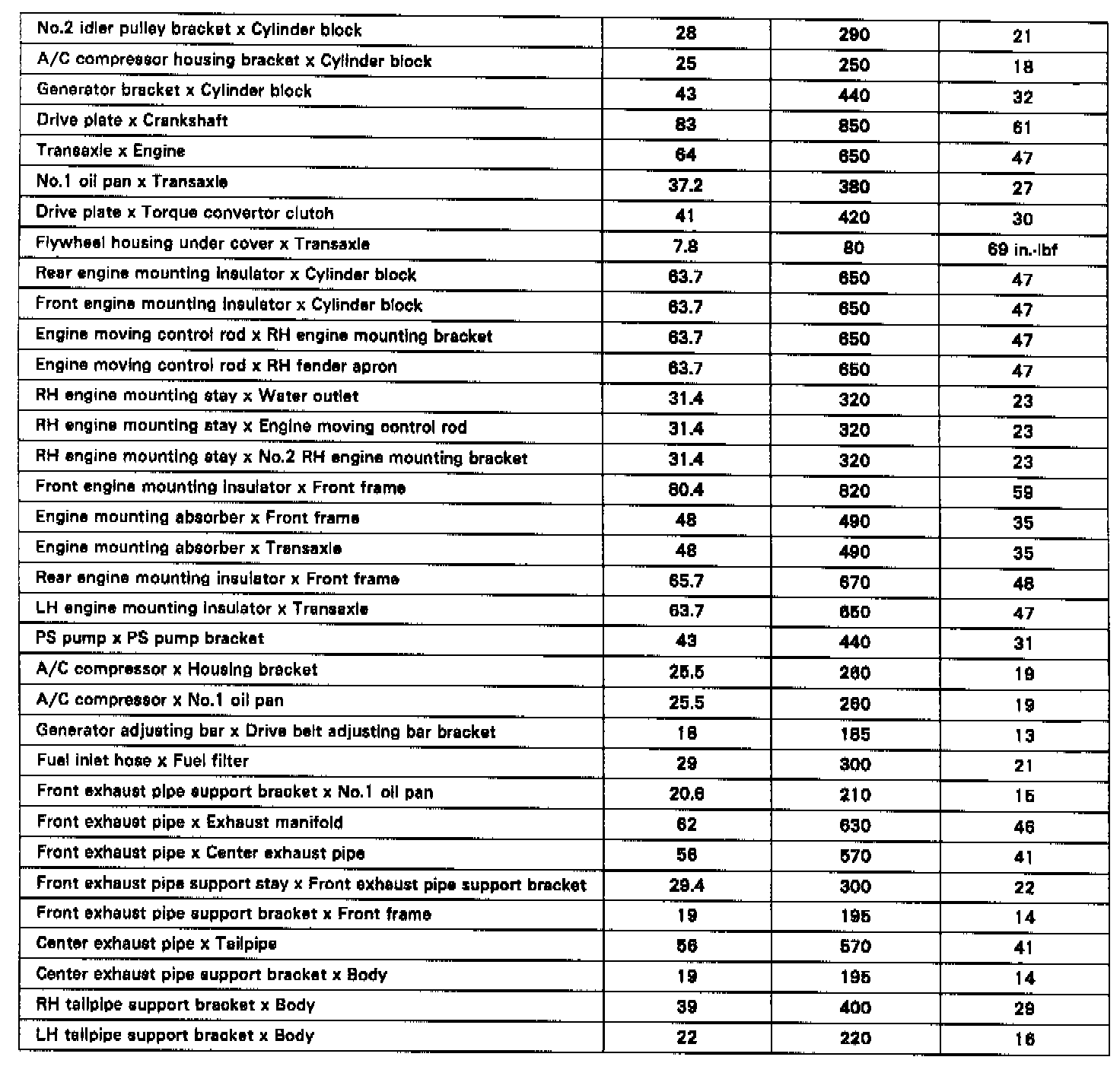

Torque Specifications (1 Of 2):

Torque Specifications (2 Of 2):

Torque Specifications

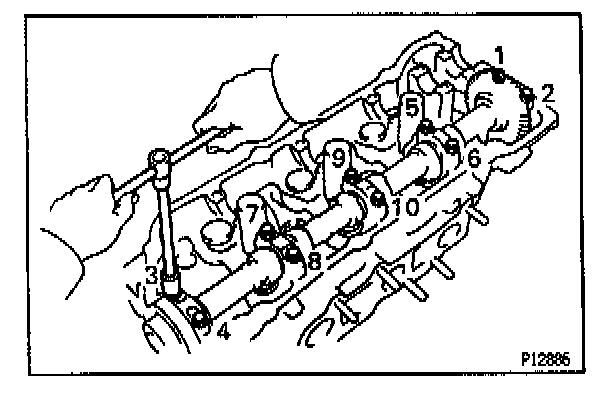

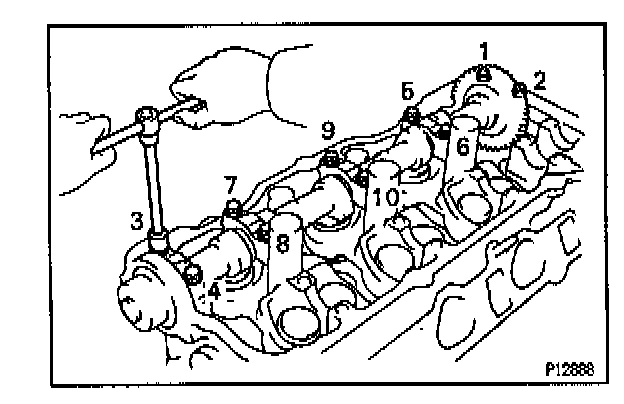

RH Cylinder Head Intake Camshaft Bearing Cap Bolt Removal Sequence:

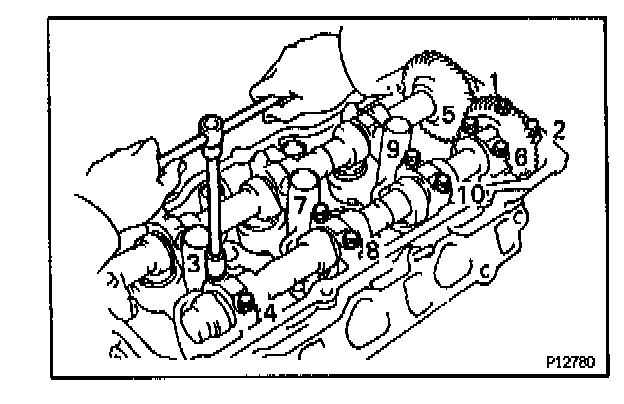

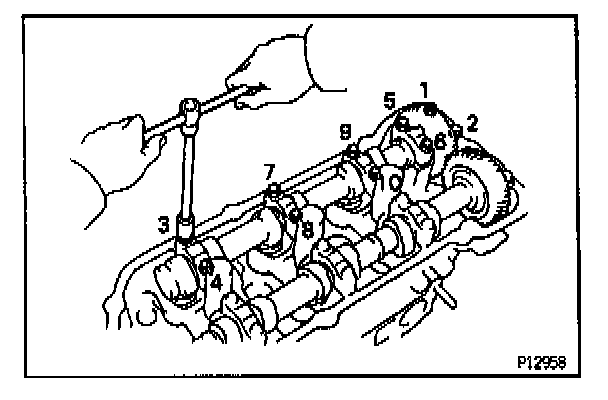

RH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Removal Sequence:

LH Cylinder Head Intake Camshaft Bearing Cap Bolt Removal Sequence:

LH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Removal Sequence:

Camshaft Bearing Removal Sequence

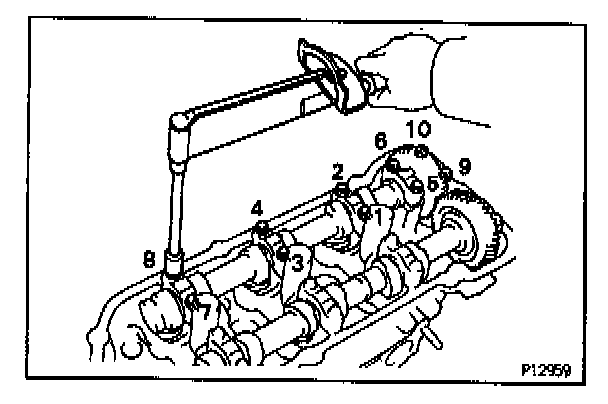

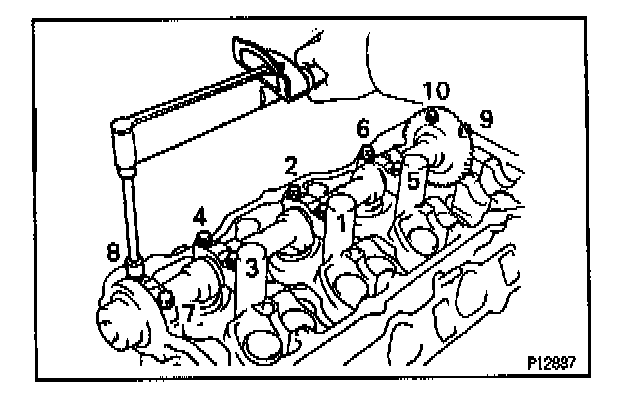

RH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Torque Sequence:

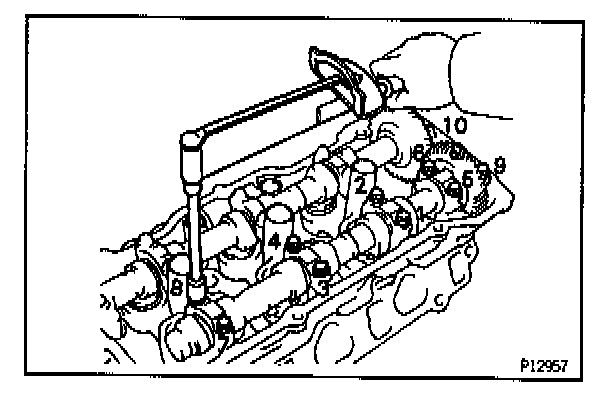

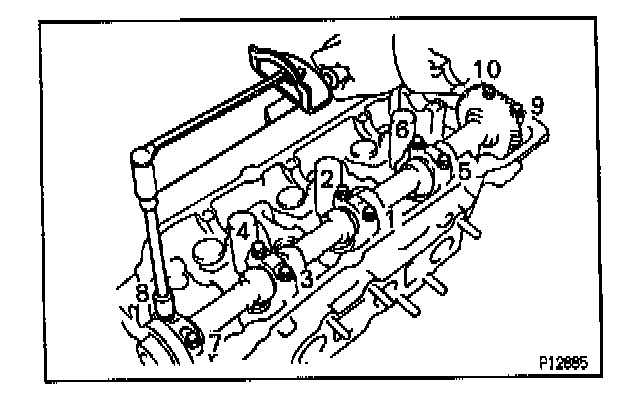

RH Cylinder Head Intake Camshaft Bearing Cap Bolt Torque Sequence:

LH Cylinder Head Exhaust Camshaft Bearing Cap Bolt Torque Sequence:

LH Cylinder Head Intake Camshaft Bearing Cap Bolt Torque Sequence:

Camshaft Bearing Torque Sequence

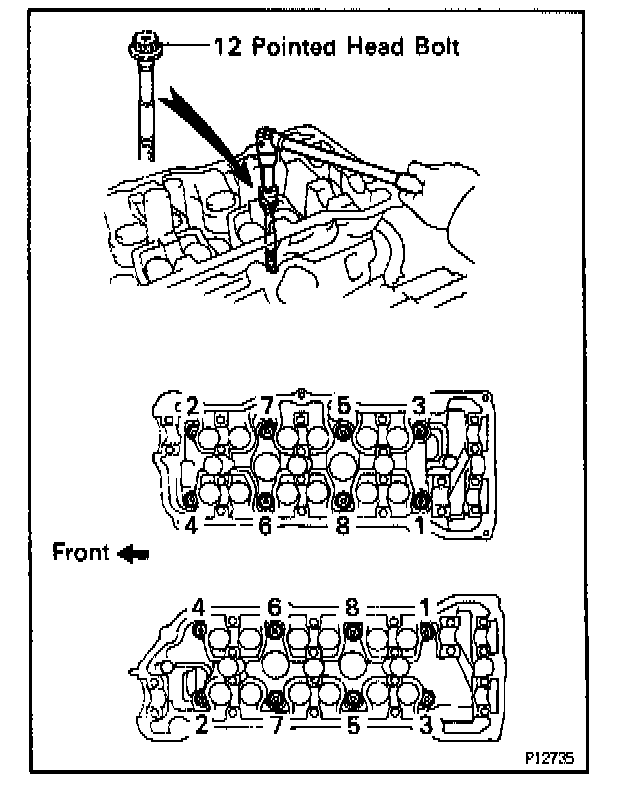

Cylinder Head Bolt Torque Sequence:

Cylinder Head Removal/Torque Sequence

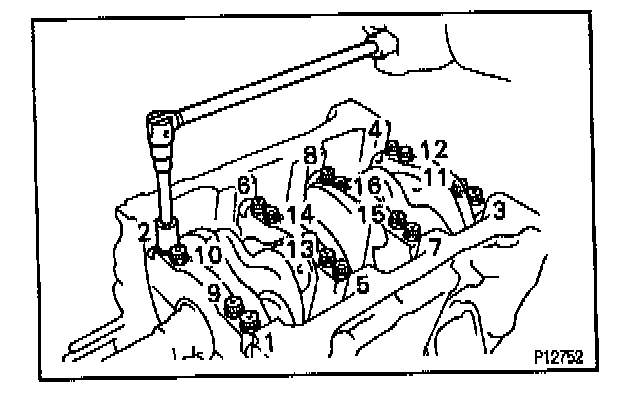

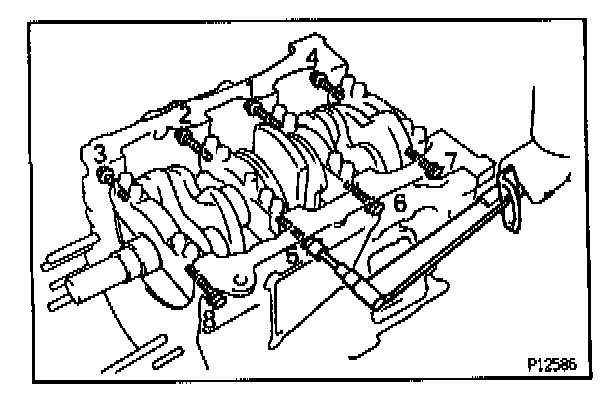

Main Bearing Cap Bolts Loosening Sequence:

Main Bearing Cap Bolts Loosening Sequence:

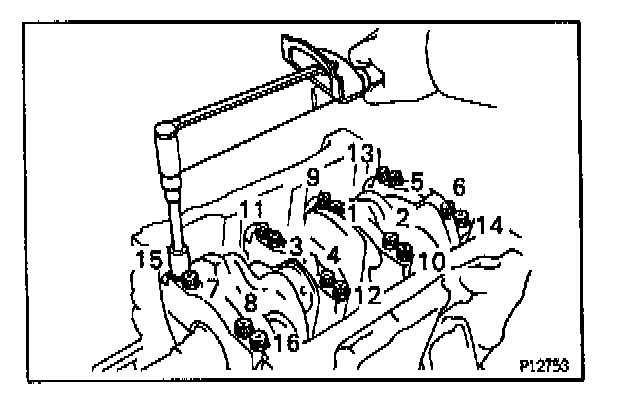

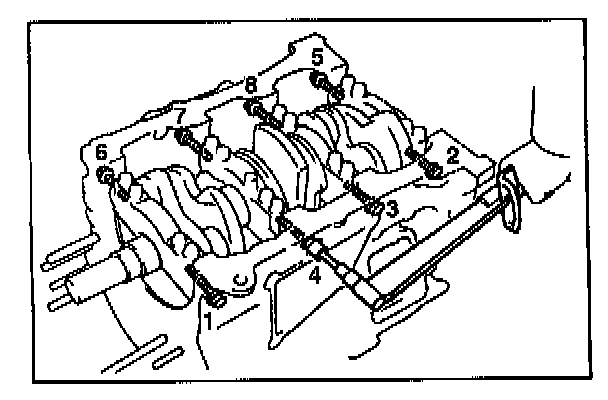

Main Bearing Cap Bolt Torque Sequence:

Main Bearing Cap Bolt Torque Sequence:

Main Bearing Cap Removal/Torque Sequence

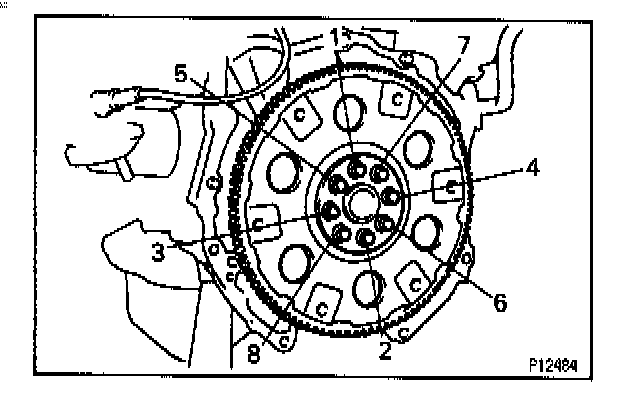

A/T Drive Plate Torque Sequence
