Power Source (Current Flow Chart)

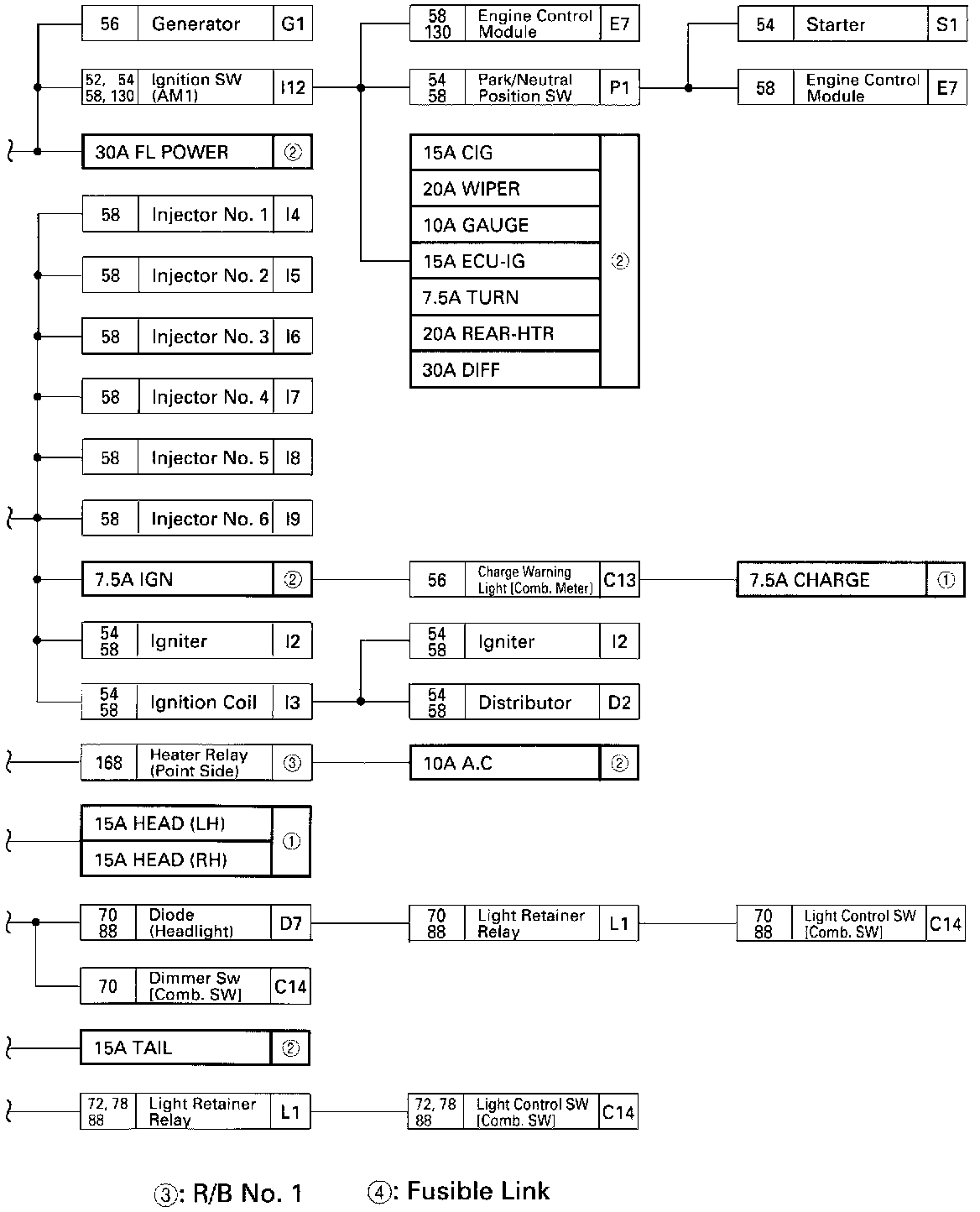

Power Source (Current Flow Chart) (Part 1 Of 2):
Power Source (Current Flow Chart) (Part 2 Of 2):
52
Power Source
54
Starting and Ignition
56
Charging
58
Engine Control
70
Headlight
72
Taillight
78
Illumination
88
Light Auto Turn Off
98
Moon Roof
130
Electronically Controlled Transmission and A/T Indicator
168
Air Conditioning
