Air Flow Meter/Sensor: Service and Repair

INSTALLATION HINT: Installation is in the reverse order of removal.

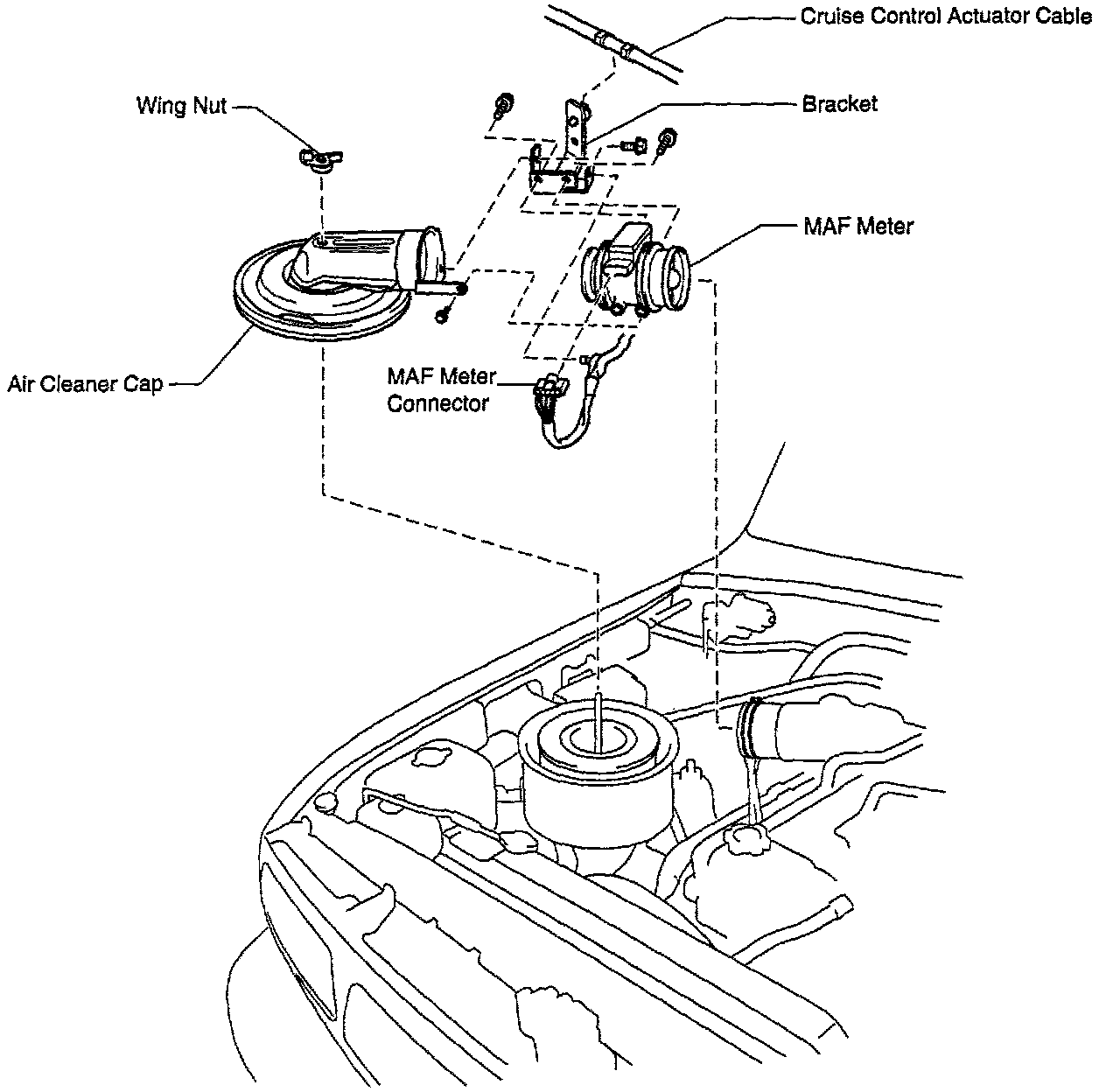

1. REMOVE AIR CLEANER CAP AND MASS AIR FLOW (MAF) METER.
- Disconnect the MAF meter connector and wire clamp.
- Disconnect the cruise control actuator cable.
- Loosen the air cleaner hose clamp.

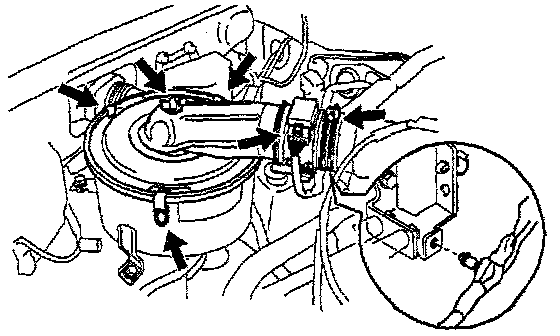

- Disconnect the 3 clips, and remove the wing nut, air cleaner cap and MAF meter.
2. REMOVE MAF METER.

- Remove the 4 bolts, bracket and MAF meter.

Torque: 6.9 Nm (61 in lb)
