Towing Precautions

WHEN TOWING FULL-TIME 4WD VEHICLES:

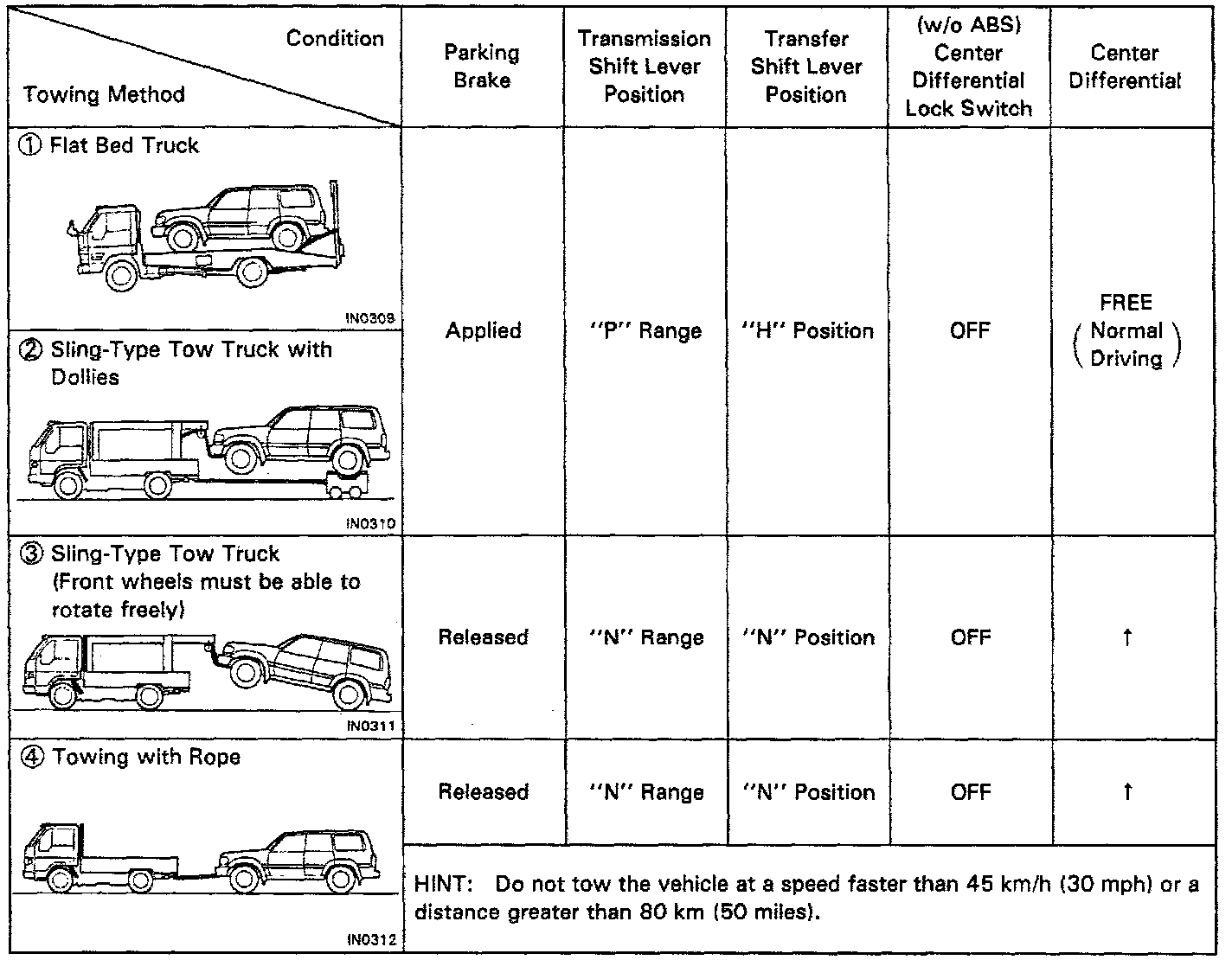

1. Use one of the recommended methods shown in the image above to tow the vehicle.
2. When there is trouble with the chassis and drive train, use method 1 (flat bed truck) or method 2 (sling type tow truck with dollies)
3. Recommended Methods: No.1,2, or 3
- Emergency Method: No.4





HINT: Do not use any towing methods other than those shown in the top image. For example, the towing method shown above is dangerous, so do not use it.
