Using OBD II Scan Tool (Excluding Toyota Hand-Held Tester)
CIRCUIT DESCRIPTION When the air conditioning operates (increased engine load), battery positive voltage is applied to terminal A/C of the ECM (
A/C signal).
The ECM then controls the Idle Air Control
(IAC) valve to increase the
idle speed while the
A/C signal is input to the ECM, thus maintaining driveability.

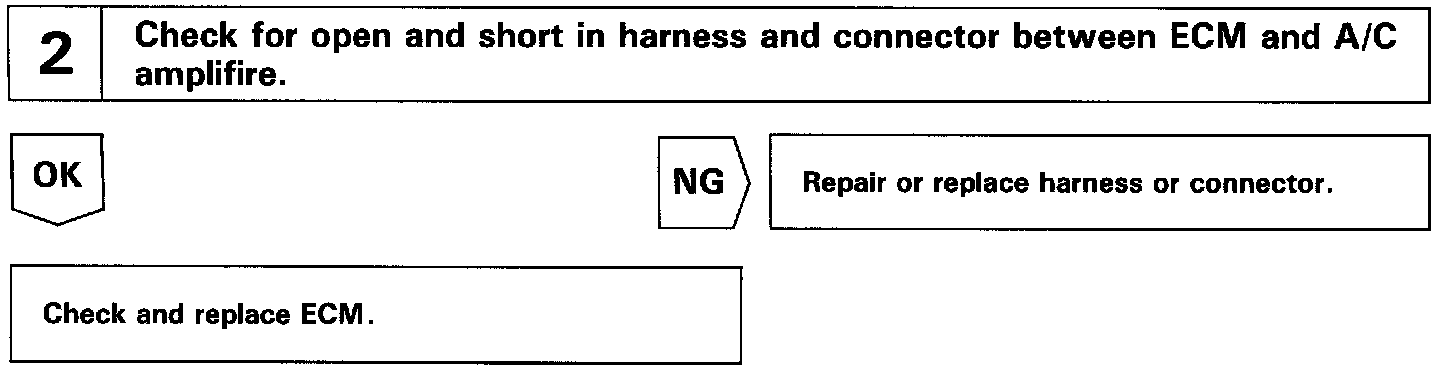

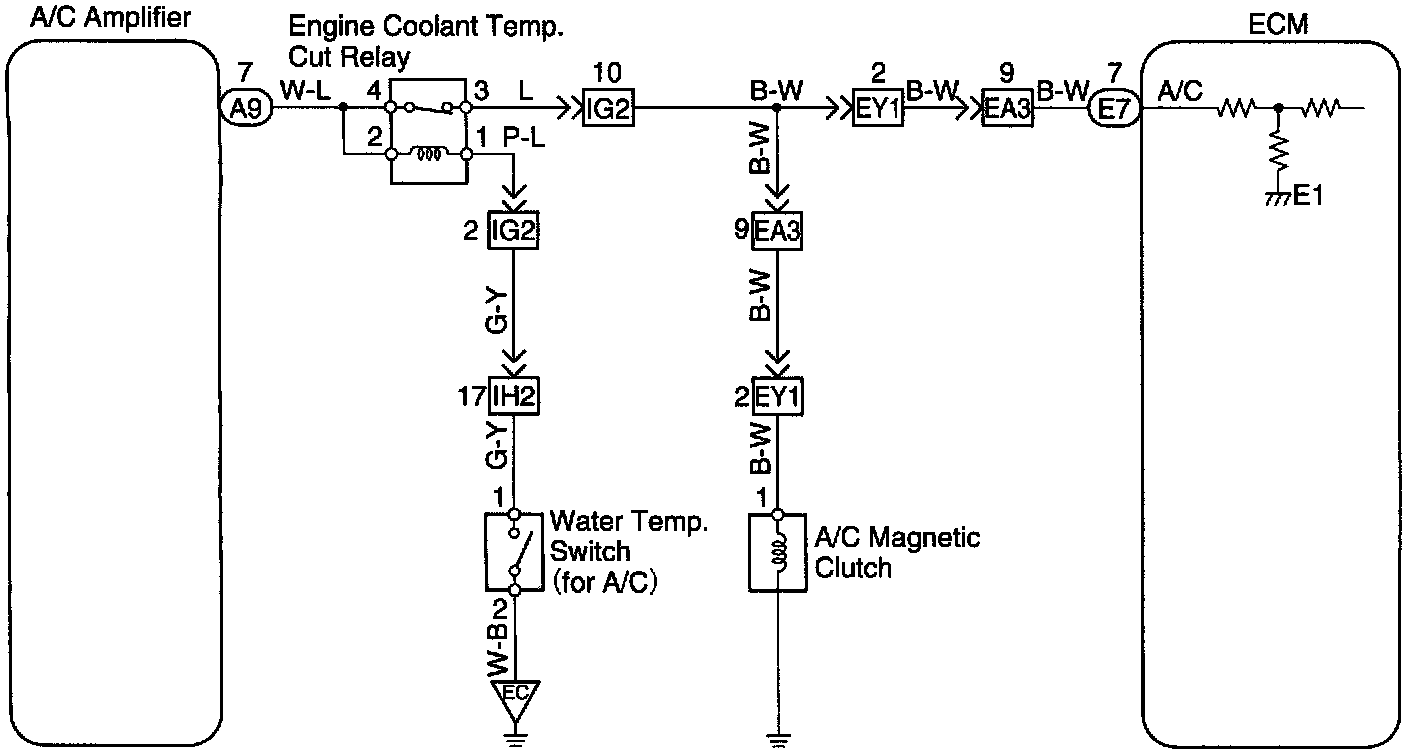

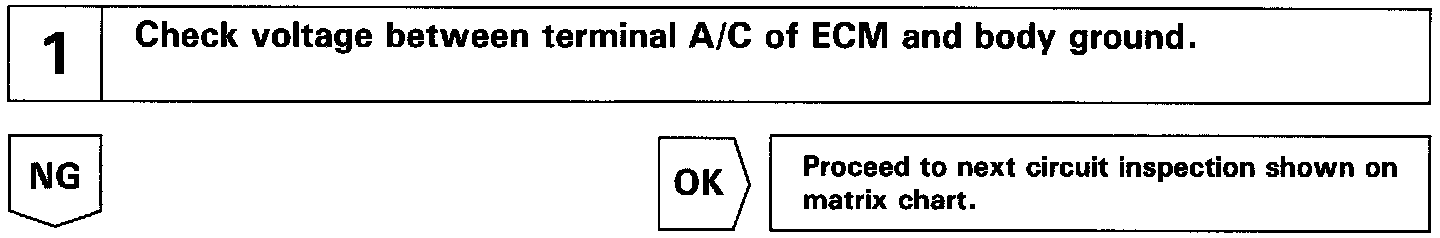

WIRING DIAGRAM INSPECTION PROCEDURE
