Engine Compartment

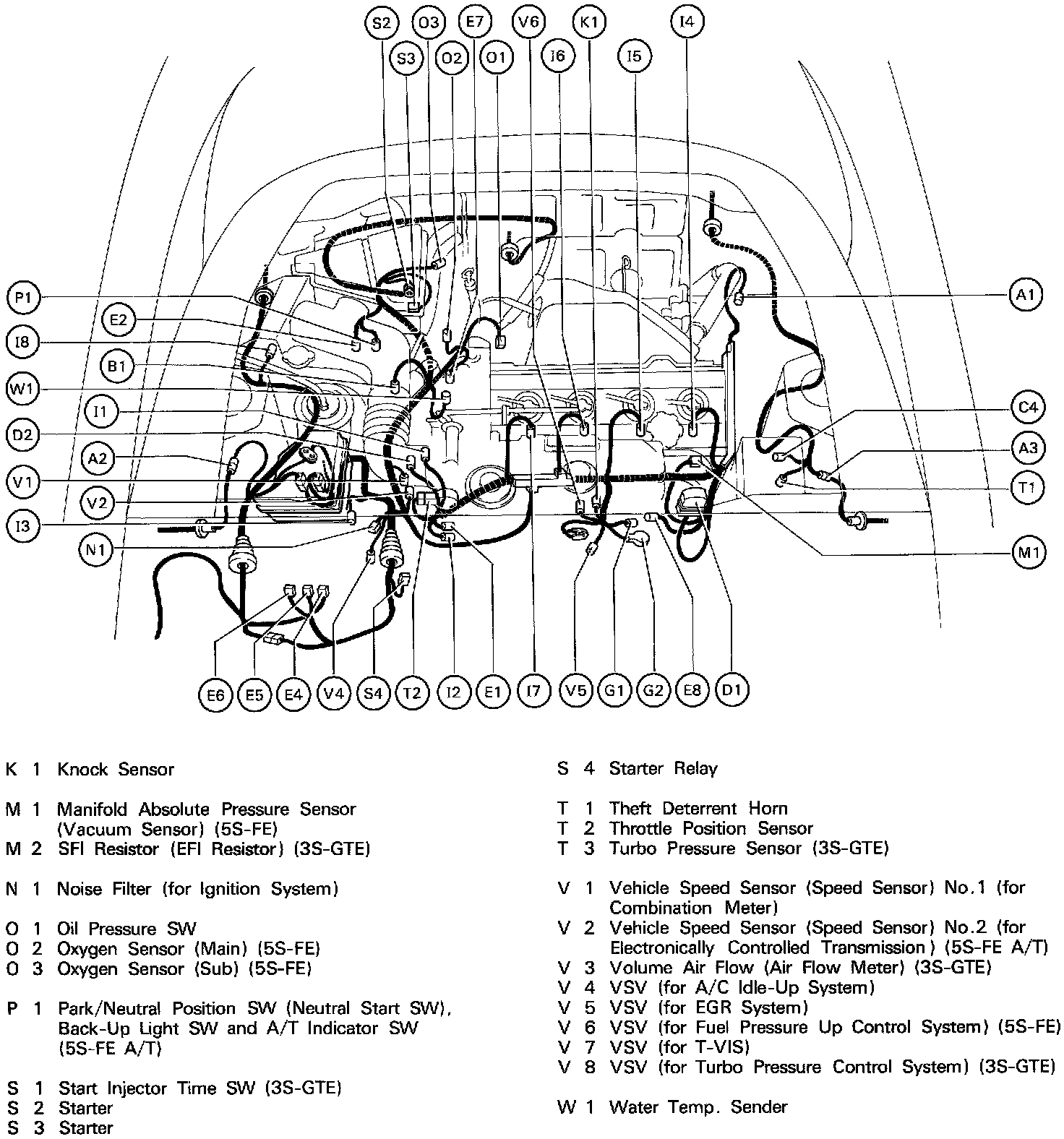

Position Of Parts In Engine Compartments (Fig 23):

K 1 Knock Sensor

M 1 Manifold Absolute Pressure Sensor
(Vacuum Sensor) (5S-FE)
M 2 SF1 Resistor (EFI Resistor) (3S-GTE)

N 1 Noise Filter (for Ignition System)

O 1 Oil Pressure SW
O 2 Oxygen Sensor (Main) (5S-FE)
O 3 Oxygen Sensor (Sub) (5S-FE)

P 1 Park/Neutral Position SW (Neutral Start SW), Back-Up Light SW and A/T Indicator SW (55-FE A/T)

S 1 Start Injector Time SW (3S-GTE)
S 2 Starter
S 3 Starter
S 4 Starter Relay

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor
T 3 Turbo Pressure Sensor (3S-GTE)

V 1 Vehicle Speed Sensor (Speed Sensor) No.1 (for Combination Meter)
V 2 Vehicle Speed Sensor (Speed Sensor) No.2 (for Electronically Controlled Transmission) (5S-FE A/T)
V 3 Volume Air Flow (Air Flow Meter) (3 S-GTE)
V 4 VSV (for A/C Idle-Up System)
V 5 VSV (for EGR System)
V 6 VSV (for Fuel Pressure Up Control System) (5S-FE)
V 7 VSV (for T-VIS)
V 8 VSV (for Turbo Pressure Control System) (3S-GTE)

W 1 Water Temp. Sender
