Main Oxygen Sensor
Oxygen Sensor(s) Circuit:
OXYGEN SENSOR INSPECTION: 1.
WARM UP ENGINE.
-
Allow the engine to warm up to normal operating temperature.
2.
INSPECT FEEDBACK VOLTAGE.
-
Connect the positive (+) probe of a voltmeter to terminal VF1 of the DLC1, and negative (-) probe to terminal E1.
-
Do the test as follows:

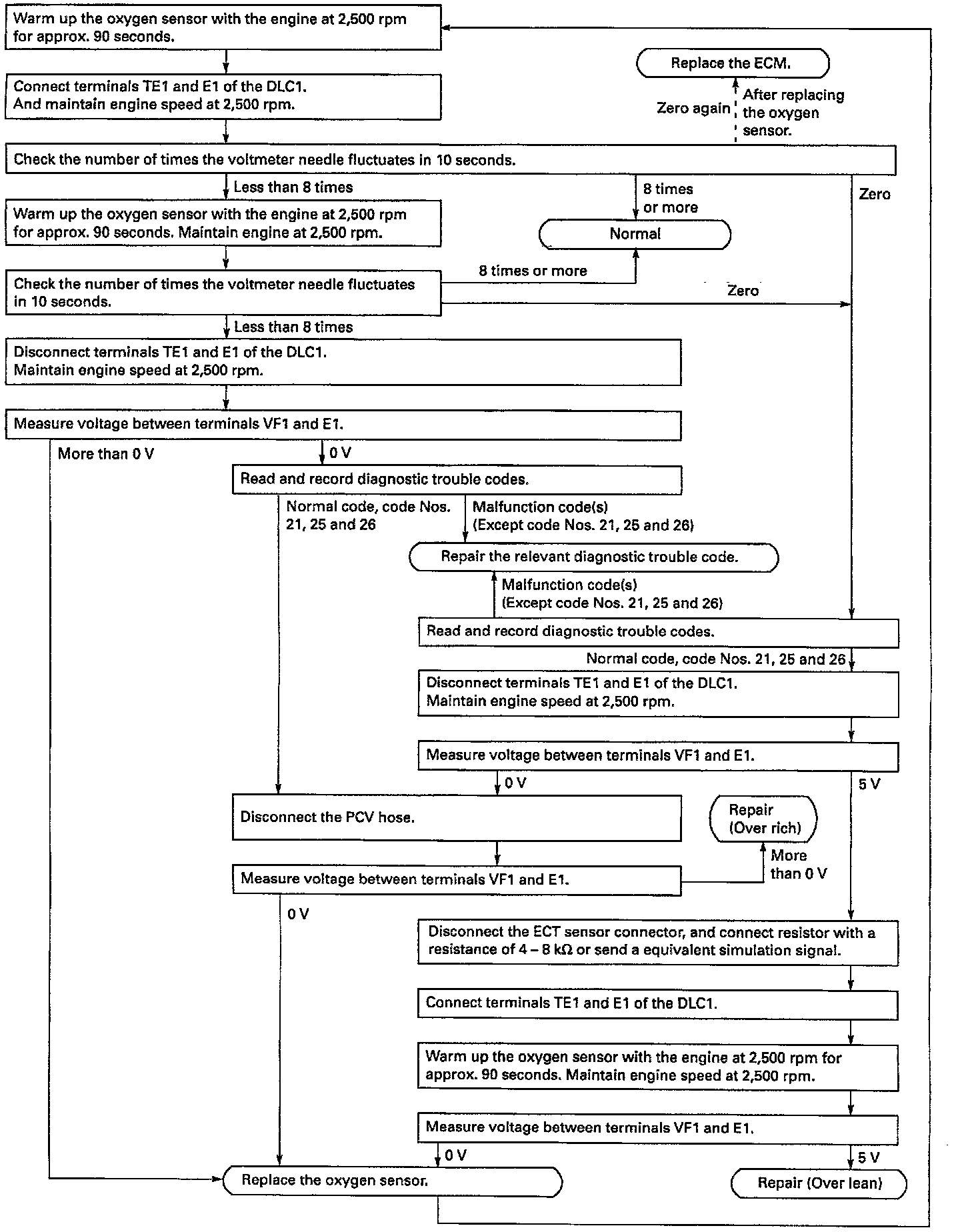

Main Oxygen Sensor Test:
