Engine Control Module: Service and Repair

NOTE: Installation is in the reverse order of removal.

1. DISCONNECT BATTERY.
2. REMOVE FRONT DOOR SCUFF PLATE.

Remove the 4 screws and front scuff plate.
3. REMOVE COWL SIDE TRIM.
Remove the clip and cowl side trim.

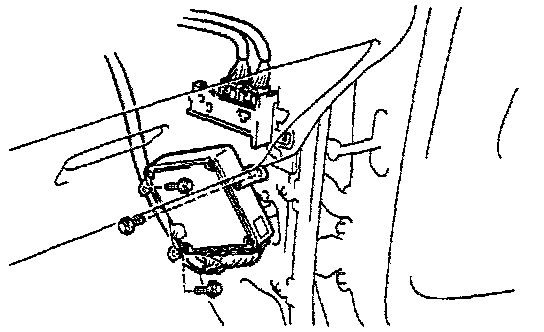

4. REMOVE ECM.

- Disconnect the 4 ECM connectors.
- Remove the 3 bolts and ECM.
